X557 - s-lhd-sop5

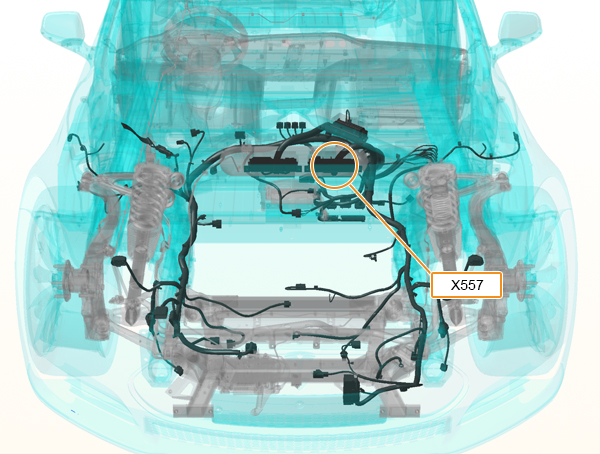

Location:

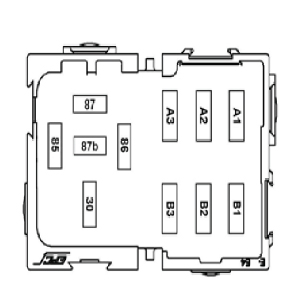

Connector Detail: aees_e5954
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A1 | RD | 8 |
| A2 | RD | 8 |
| A3 | RD/BN | 5 |
| A3 | RD/WH | 5 |
| B1 | OG/YE | 5 |
| B2 | OG/RD | 5 |
| B3 | YE/GY | 3 |
| B3 | YE/GY | 3 |
| 85 | DB/WH | 1 |
| 86 | BK | 0.35 |
| 30 | RD/WH | 2 |
| 87 | DB | 2 |
| 87b | YE/BN | 2 |
