X828 - s-lhd-sop5

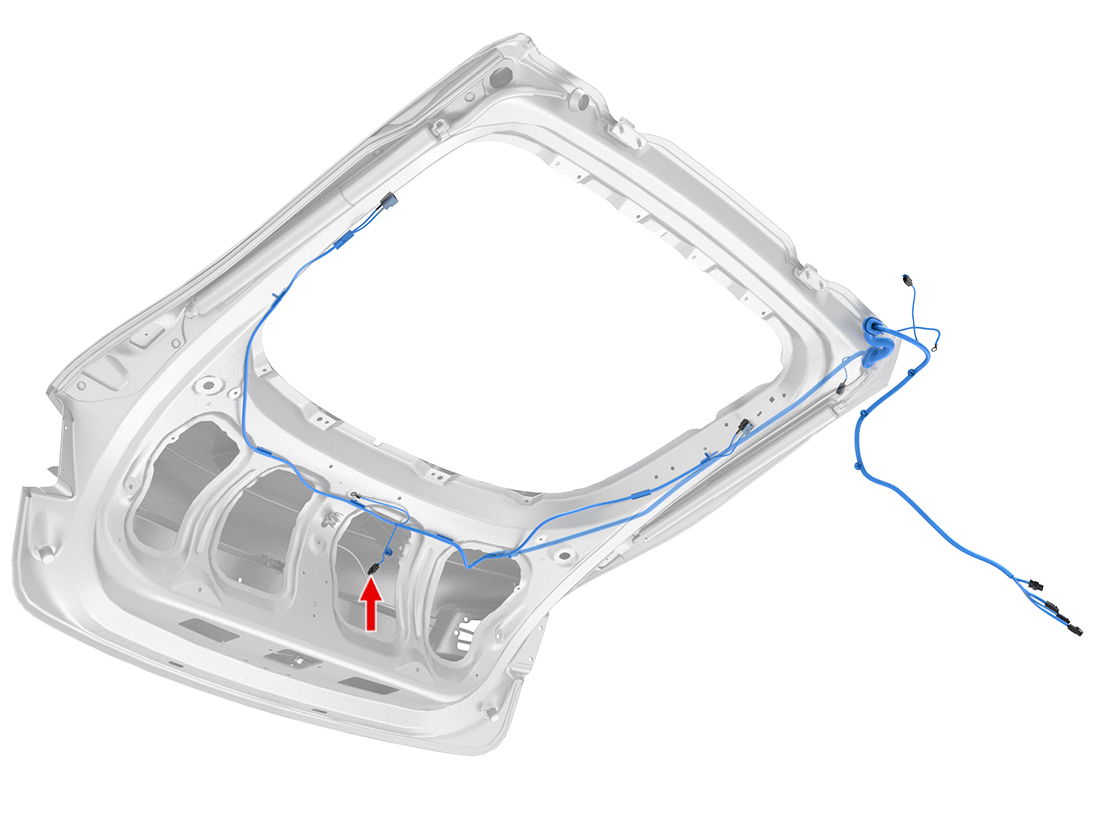

Location:

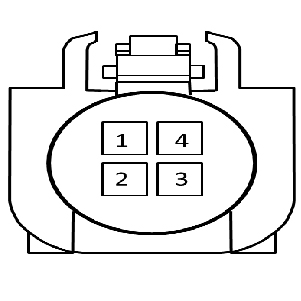

Connector Detail: gen_hsd_plug_a
Gender:
Color: Orange
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG | 0.22 |
| 2 | BN | 0.22 |
| 3 | GN | 0.22 |
| 4 | BU | 0.22 |
| SH | SH | 6.01 |
