X900F - s-lhd-sop5

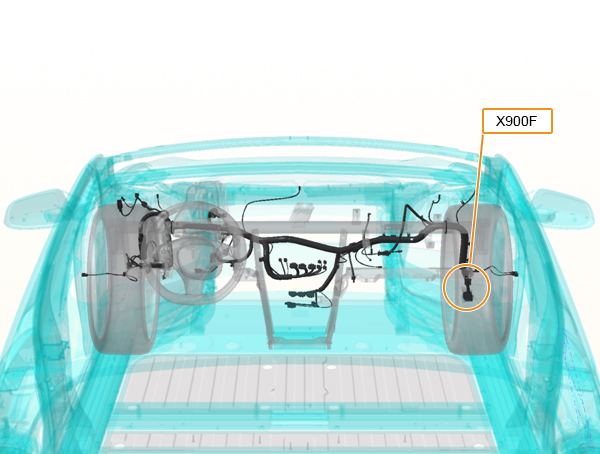

Location:

Connector Detail: yazaki_7283-4190-30

Gender:

Color: BK

Cav	Col	Gauge
1	BN	2
1	GY	2
2	BN/BK	2
2	GY/BK	2
3	YE/BN	3
4	BK	3
5	RD/YE	2
6	DG	2
7	DG/BK	2
10	DB/PK	0.35
11	RD/BK	0.5
12	OG	0.5
12	OG	0.5
13	GY	0.5
13	GY	0.5
14	PK	0.5
15	YE	0.5
16	YE/RD	0.5
16	YE/RD	0.5
17	YE/DG	0.5
17	YE/DG	0.5
23	WH/DB	0.35
24	PK/BK	0.5
28	RD	0.5
29	YE/DG	0.5
31	LB	0.5
31	LB	0.5
32	DB	0.5
32	DB	0.5
33	LG	0.5
34	LG/OG	0.5
35	LG/VT	0.5
36	RD/WH	0.5
37	TN/BK	0.5
38	LG/RD	0.5
42	DG/VT	0.35
