X902M - s-lhd-sop5

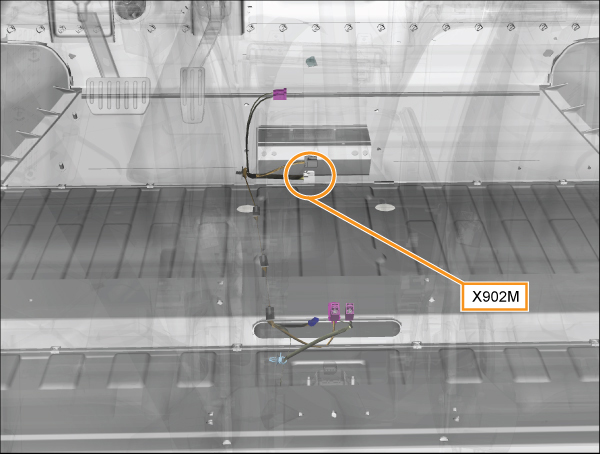

Location:
Connector Detail: yazaki_7282-6568-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 5 | OG/VT | 0.5 |
| 6 | RD/WH | 0.5 |
| 9 | RD | 0.35 |
| 15 | PK/YE | 0.5 |
| 16 | BK/TN | 0.5 |
| 19 | BK | 0.35 |
| 20 | SH | 3.01 |
2012-2020 Model S Connector Reference
