X903M - s-lhd-sop5

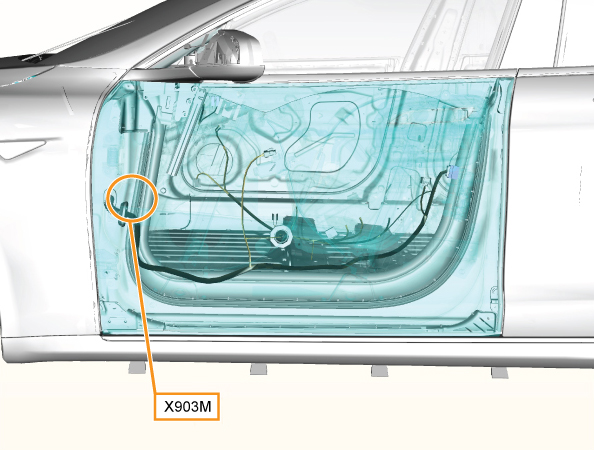

Location:
Connector Detail: amp_1376106-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH | 0.35 |
| 2 | VT/GY | 0.5 |
| 3 | DB/LB | 0.35 |
| 4 | WH/BN | 0.35 |
| 5 | TN | 0.35 |
| 7 | DG/VT | 0.5 |
| 9 | RD | 0.5 |
| 10 | GY/YE | 0.5 |
| 11 | OG | 0.5 |
| 12 | LG | 0.5 |
| 16 | OG | 0.35 |
