X905F - s-lhd-sop5

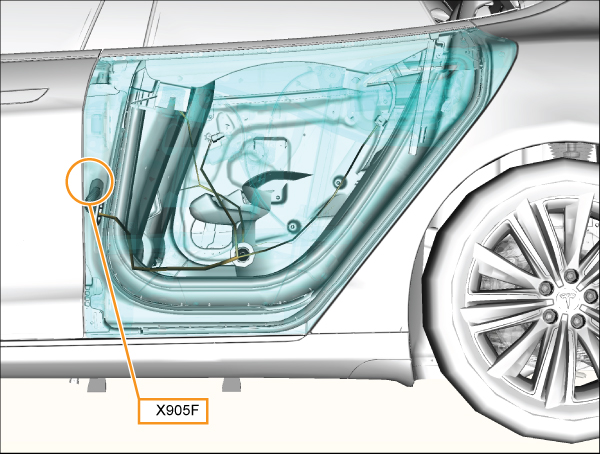

Location:
Connector Detail: amp_1318386-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/GY | 0.35 |
| 2 | TN/DB | 0.35 |
| 3 | LG | 0.35 |
| 5 | DB/LB | 0.35 |
| 6 | TN/BK | 0.5 |
| 13 | LG/VT | 0.35 |
| 14 | WH/GY | 0.5 |
| 15 | WH/BK | 0.5 |
| 16 | DB/PK | 0.5 |
