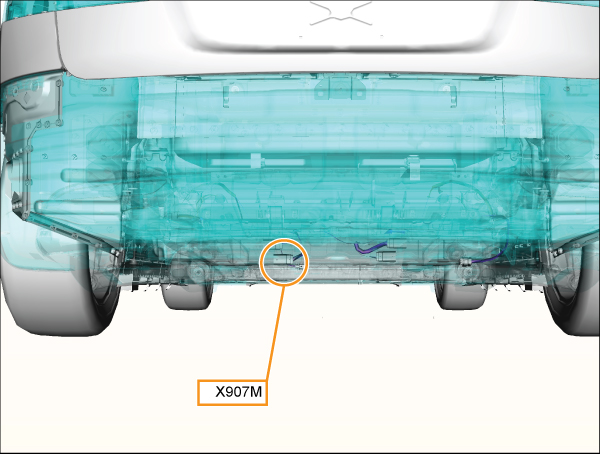

X907M - s-lhd-sop5
Location:
Connector Detail: molex_33482-1201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK | 0.5 |
| 2 | LB | 0.5 |
| 3 | WH/LB | 0.5 |
| 4 | BN/OG | 0.5 |
| 5 | RD/WH | 1 |
| 6 | LG | 0.5 |
| 7 | DG/VT | 0.5 |
| 8 | GY/BK | 0.35 |
| 9 | GY/YE | 0.35 |
| 10 | VT/LG | 0.5 |
| 11 | BN/YE | 0.5 |
| 12 | WH/DG | 0.5 |
