X913M - s-lhd-sop5

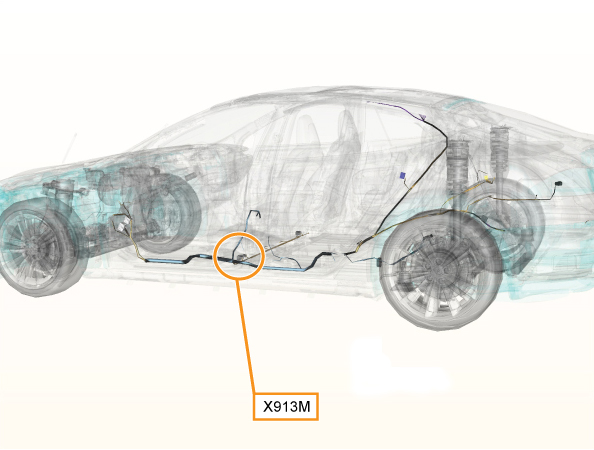

Location:
Connector Detail: amp_1-1718491-2
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BN | 0.35 |
| 2 | PK/RD | 0.35 |
| 10 | WH | 0.35 |
| 11 | WH/VT | 0.35 |
| 19 | RD/WH | 1 |
| 20 | BK/WH | 1 |
| 21 | RD/GY | 1 |
| 22 | BK/GY | 1 |
