X921F - s-lhd-sop5

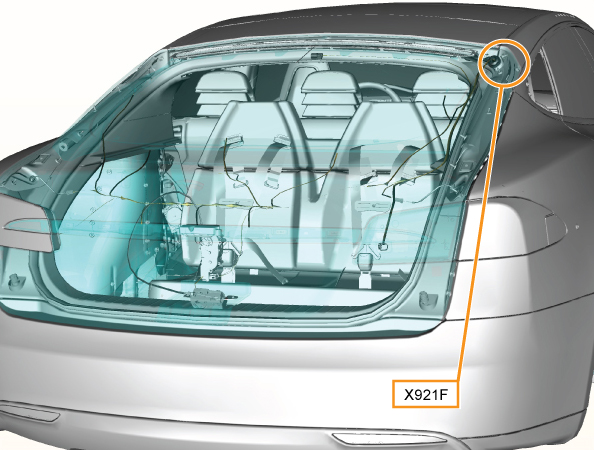

Location:
Connector Detail: amp_1318386-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK/WH | 0.5 |
| 2 | GY/WH | 0.35 |
| 3 | TN/OG | 0.5 |
| 4 | TN/DG | 0.5 |
| 5 | VT/DG | 0.35 |
| 8 | VT/GY | 0.5 |
| 9 | GY/WH | 0.5 |
| 10 | DB/PK | 0.5 |
| 11 | WH | 0.35 |
| 12 | LG/RD | 0.5 |
| 14 | TN/DB | 0.5 |
