X961F - s-lhd-sop5

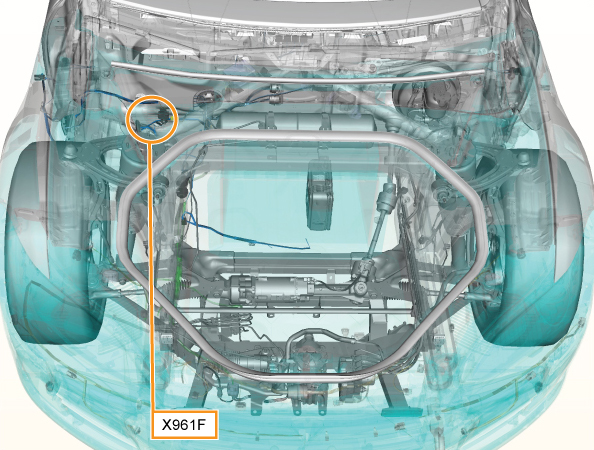

Location:

Connector Detail: yazaki_7283-4192-40

Gender:

Color: LightGray

Cav	Col	Gauge
1	DG	2
2	DG/BK	2
3	RD/GY	2
5	RD/WH	2
8	TN/DB	0.35
9	TN/BK	0.35
10	WH/VT	0.35
11	BK/WH	0.5
12	GY/WH	0.35
13	VT/GY	0.5
14	TN/OG	0.5
15	TN/DG	0.35
16	VT/DG	0.35
17	RD/BK	0.5
18	BN/YE	0.5
19	LG/VT	0.35
20	PK	0.5
21	RD/DB	0.5
22	LG/RD	0.5
23	BN/BK	0.5
24	WH/BK	0.5
25	LB	0.5
26	RD/YE	0.5
27	DB/YE	0.5
28	PK/DG	0.35
29	WH/BN	0.35
30	TN	0.35
31	GY/WH	0.35
32	WH/VT	0.35
33	WH/LB	0.5
34	BN/OG	0.5
35	LG	0.5
36	DB/PK	0.35
37	WH/RD	0.5
38	WH/DB	0.5
39	OG	0.35
40	WH	0.35
41	WH	0.35
42	LG/RD	0.35
