X981M - s-lhd-sop5

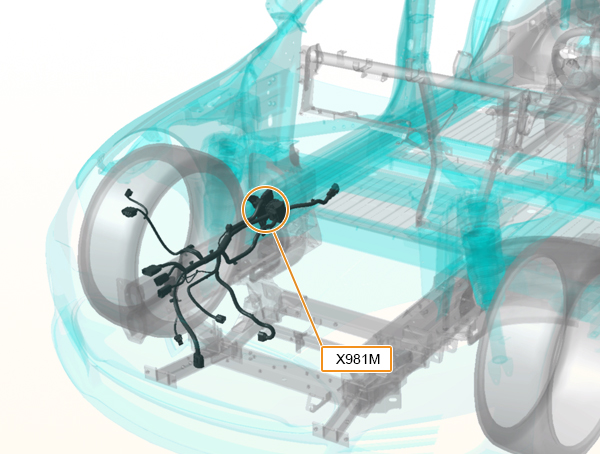

Location:
Connector Detail: molex_33482-2001
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/RD | 0.5 |
| 2 | LG/WH | 0.5 |
| 3 | BK | 0.5 |
| 4 | GY/DG | 0.5 |
| 5 | TN/OG | 0.5 |
| 6 | TN/DB | 0.5 |
| 6 | DB/PK | 0.35 |
| 7 | PK/RD | 0.35 |
| 7 | WH | 0.5 |
| 8 | GY | 0.5 |
| 9 | OG | 0.5 |
| 10 | VT | 0.75 |
| 11 | WH/BK | 0.5 |
| 12 | WH/DB | 0.5 |
| 13 | WH/BN | 0.5 |
| 14 | WH/DG | 0.5 |
| 15 | GY/YE | 0.5 |
| 16 | TN/RD | 0.5 |
| 17 | WH/VT | 0.35 |
| 17 | TN/BK | 0.5 |
| 18 | RD/GY | 0.75 |
| 19 | OG/BN | 1 |
| 20 | OG/DB | 0.5 |
