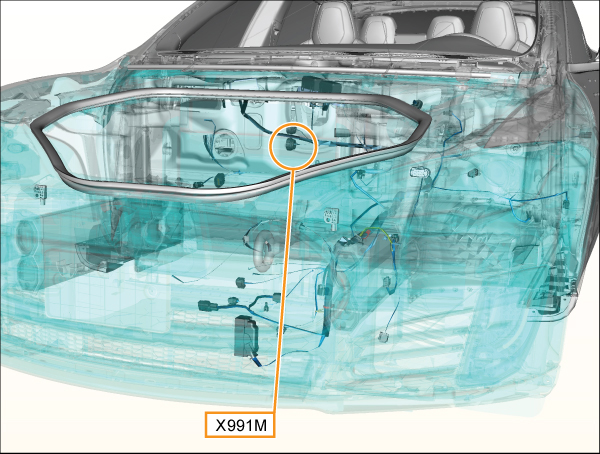

X991M - s-lhd-sop5

Location:

Connector Detail: molex_33482-2001

Gender:

Color: BK

Cav	Col	Gauge
1	YE/RD	0.5
1	YE/RD	0.5
2	YE/DG	0.5
2	YE/DG	0.5
3	VT/LG	0.5
4	BN/YE	0.5
5	VT/OG	0.5
6	WH/LB	0.5
7	PK/DG	0.35
7	DB/GY	0.5
8	DG	0.35
8	BN/GY	0.5
9	OG/DG	0.35
9	BK/GY	0.5
10	RD/WH	0.5
11	BN/RD	0.5
12	BN/LB	0.5
13	BK/TN	0.35
14	RD/TN	0.5
15	WH/DG	0.5
15	WH/DG	0.5
16	DG	0.5
16	DG	0.5
17	GY	0.5
18	OG	0.5
19	WH/RD	0.5
20	RD	0.5
