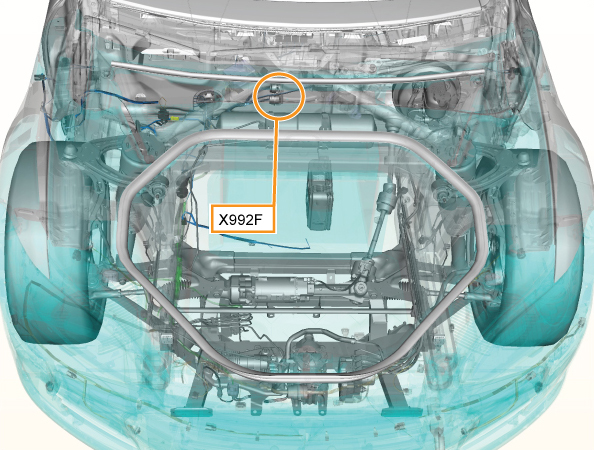

X992F - s-lhd-sop5
Location:
Connector Detail: yazaki_7283-3108-10
Gender:
Color: DarkGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/LG | 3 |
| 2 | GY/WH | 3 |
| 3 | YE/RD | 3 |
