X024 - s-lhd-sop6

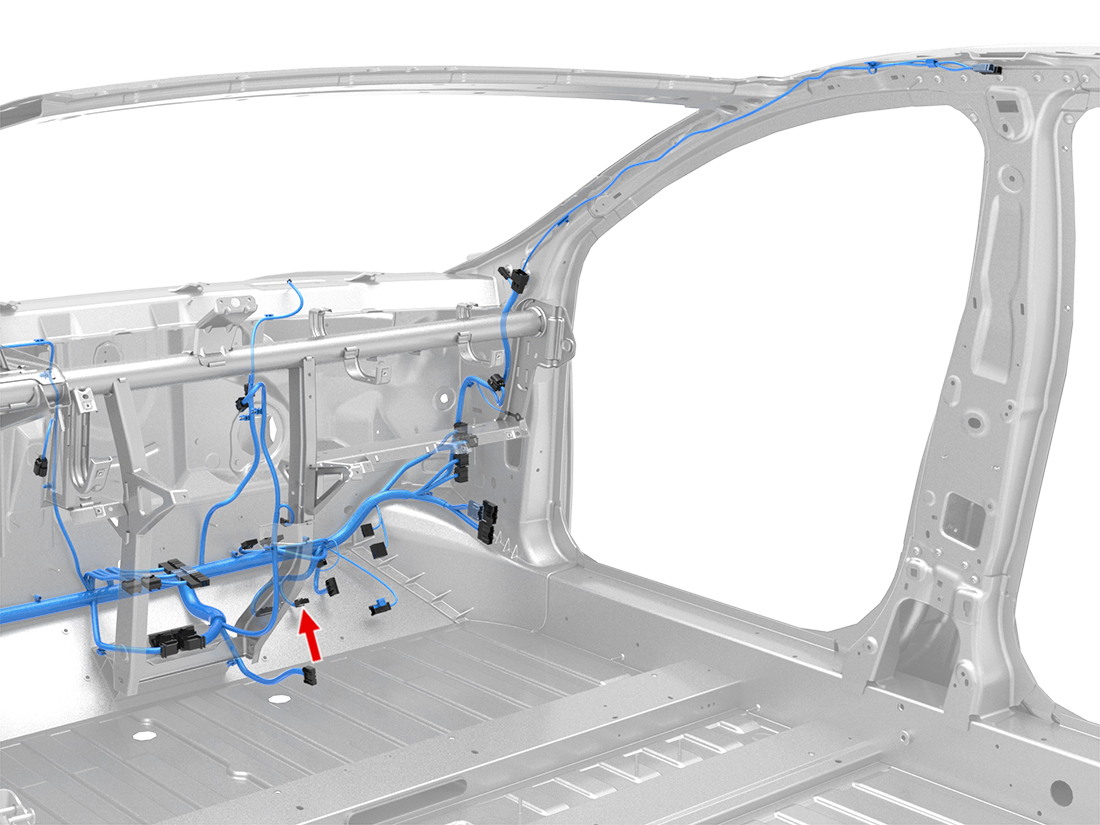

Location:
Connector Detail: jae_mx34016sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD | 0.35 |
| 3 | VT/BN | 0.35 |
| 4 | YE | 0.5 |
| 5 | OG/BN | 0.35 |
| 6 | OG | 0.35 |
| 7 | RD/WH | 0.35 |
| 8 | BK/WH | 0.35 |
| 9 | RD/OG | 0.35 |
| 10 | RD/YE | 0.35 |
| 11 | GY | 0.35 |
| 12 | WH | 0.35 |
| 13 | DB/PK | 0.35 |
| 15 | RD/GY | 0.35 |
| 16 | BK/GY | 0.35 |
