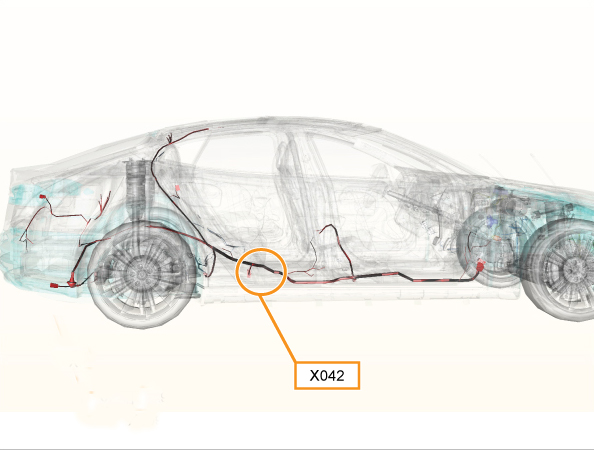

X042 - s-lhd-sop6
Location:
Connector Detail: molex_19418-0026
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/BN | 0.75 |
| 2 | YE | 0.5 |
| 3 | YE/RD | 0.5 |
| 4 | WH/RD | 0.5 |
| 5 | VT | 0.5 |
| 6 | RD/GY | 0.5 |
| 7 | BK | 0.5 |
| 8 | OG/VT | 0.5 |
| 9 | YE/BN | 0.5 |
| 10 | RD | 0.5 |
| 11 | OG | 0.5 |
| 12 | RD/GY | 0.75 |
