X043 - s-lhd-sop6

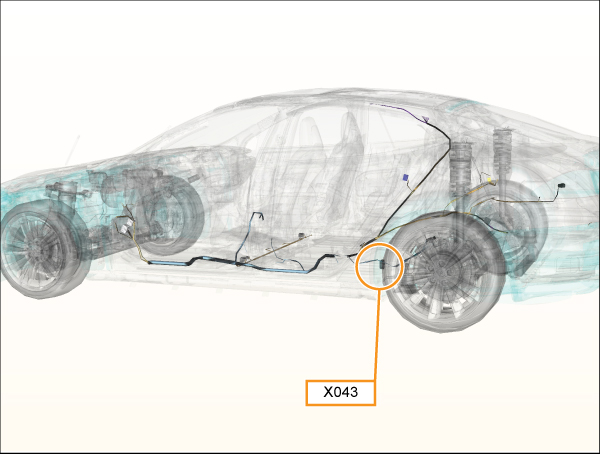

Location:
Connector Detail: molex_19418-0026
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/BN | 0.75 |
| 3 | YE/DB | 0.5 |
| 4 | WH/RD | 0.5 |
| 7 | BK | 0.5 |
| 9 | YE/RD | 0.5 |
| 10 | RD | 0.5 |
2012-2020 Model S Connector Reference
