X107 - s-lhd-sop6

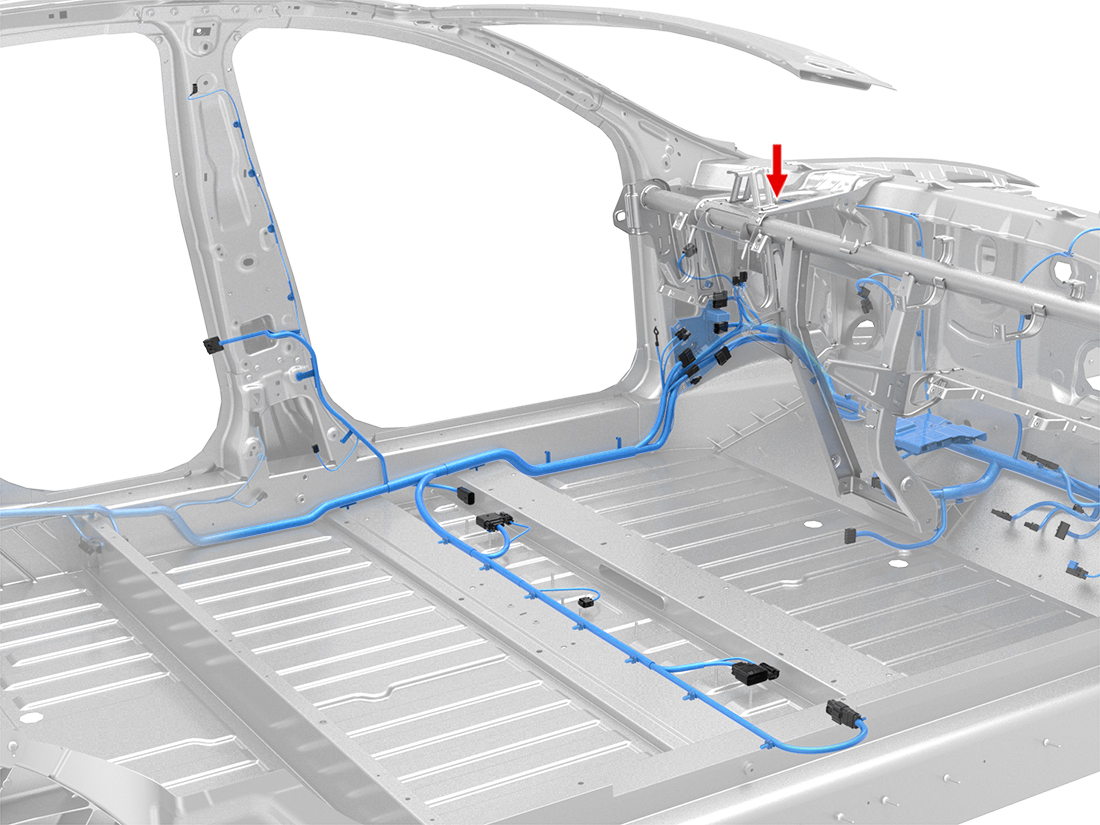

Location:
Connector Detail: yazaki_7183-4347
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK | 0.5 |
| 2 | PK | 0.5 |
| 3 | WH/DG | 0.5 |
| 4 | DG/VT | 0.5 |
2012-2020 Model S Connector Reference
