X128A - s-lhd-sop6

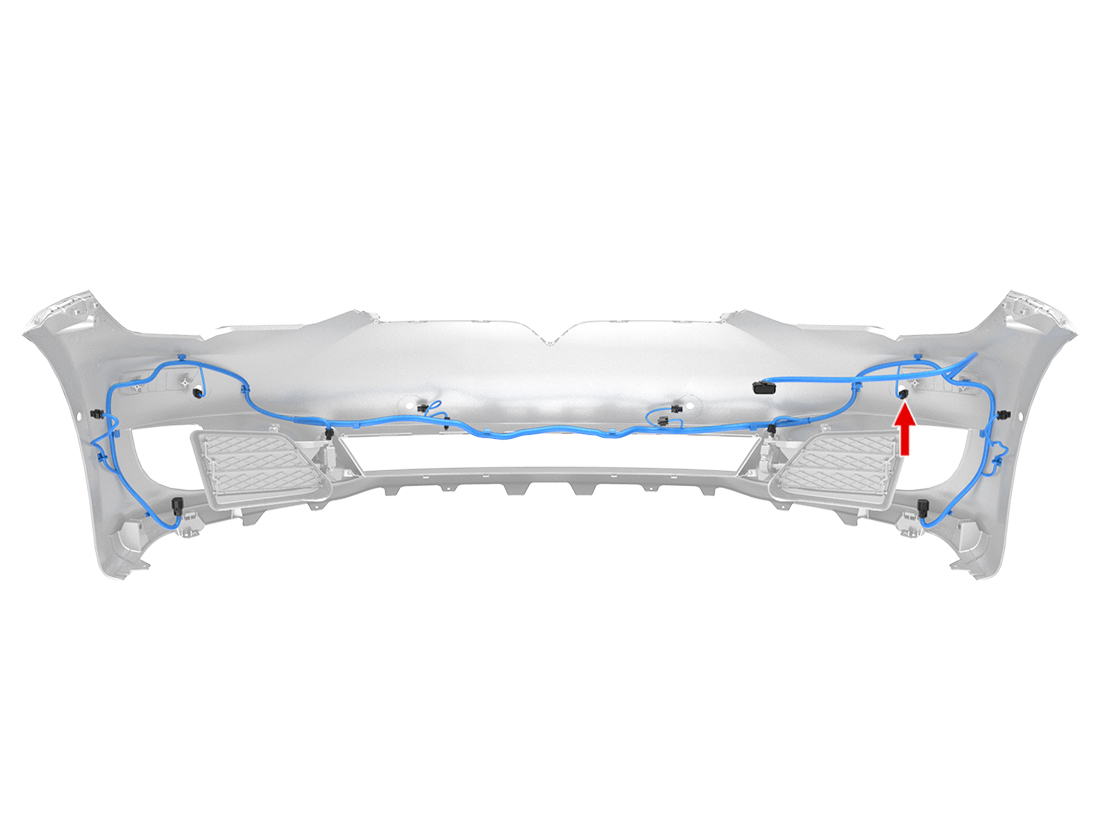

Location:
Connector Detail: hirschmann_872-858-542
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN | 0.5 |
| 2 | LB/BN | 0.35 |
| 3 | WH/VT | 0.5 |
2012-2020 Model S Connector Reference
