X129A - s-lhd-sop6

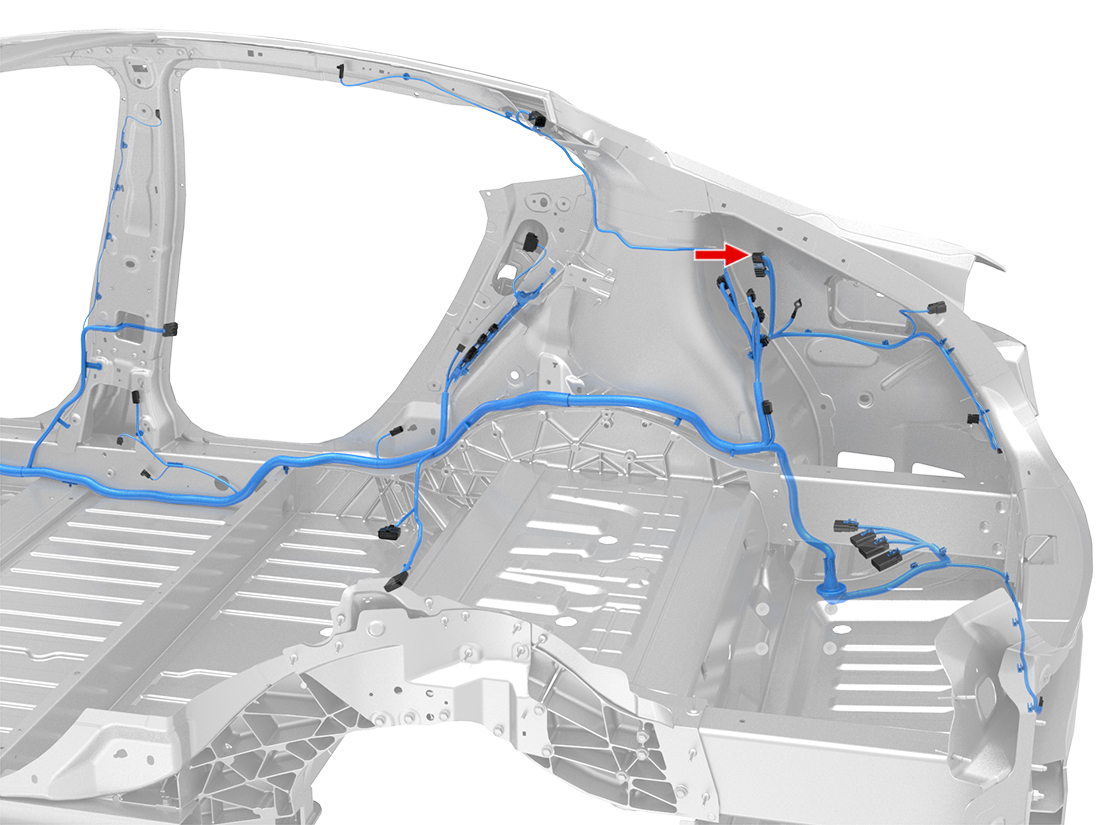

Location:
Connector Detail: molex_34729-0120
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 6 | WH/DG | 0.35 |
| 7 | BK | 0.5 |
| 12 | DG | 0.35 |
