X138 - s-lhd-sop6

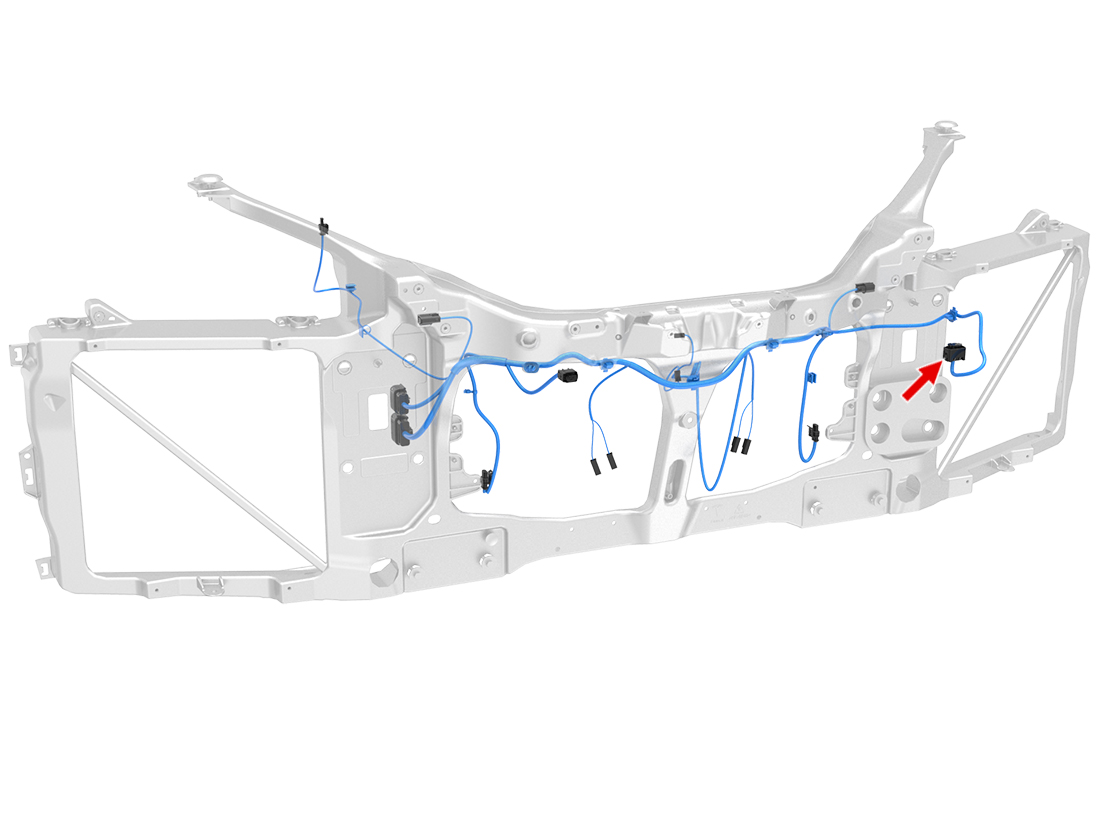

Location:
Connector Detail: amp_1-1534229-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.5 |
| 2 | OG | 0.5 |
| 3 | GY | 0.5 |
| 8 | LB | 0.5 |
2012-2020 Model S Connector Reference
