X224 - s-lhd-sop6

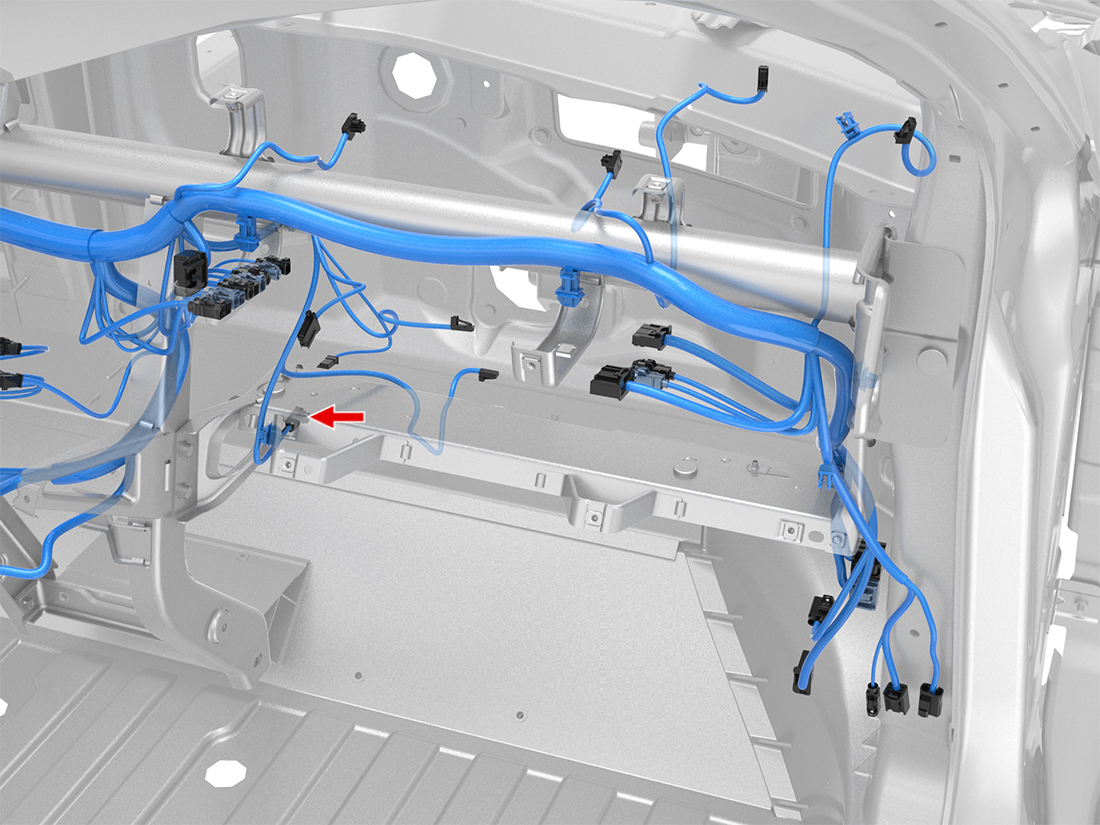

Location:
Connector Detail: amp_1612121-4
Gender:
Color: Yellow
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK/BK | 0.5 |
| 2 | DG/BK | 0.5 |
2012-2020 Model S Connector Reference
