X725 - s-lhd-sop6

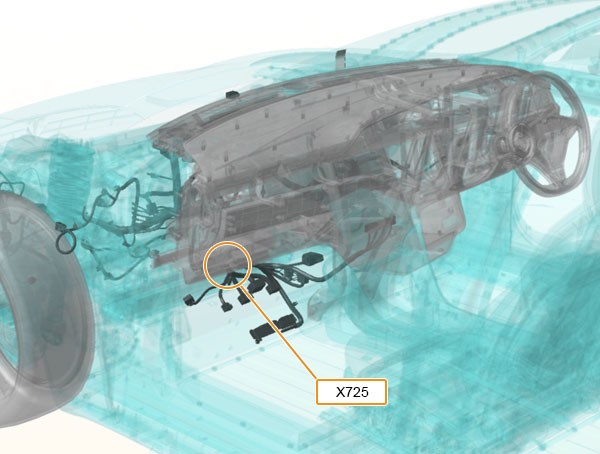

Location:
Connector Detail: yazaki_7183-3190
Gender:
Color: White
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/RD | 0.35 |
| 2 | WH/RD | 0.35 |
| 3 | WH/RD | 0.5 |
2012-2020 Model S Connector Reference
