X041 - s-lhd-sop7

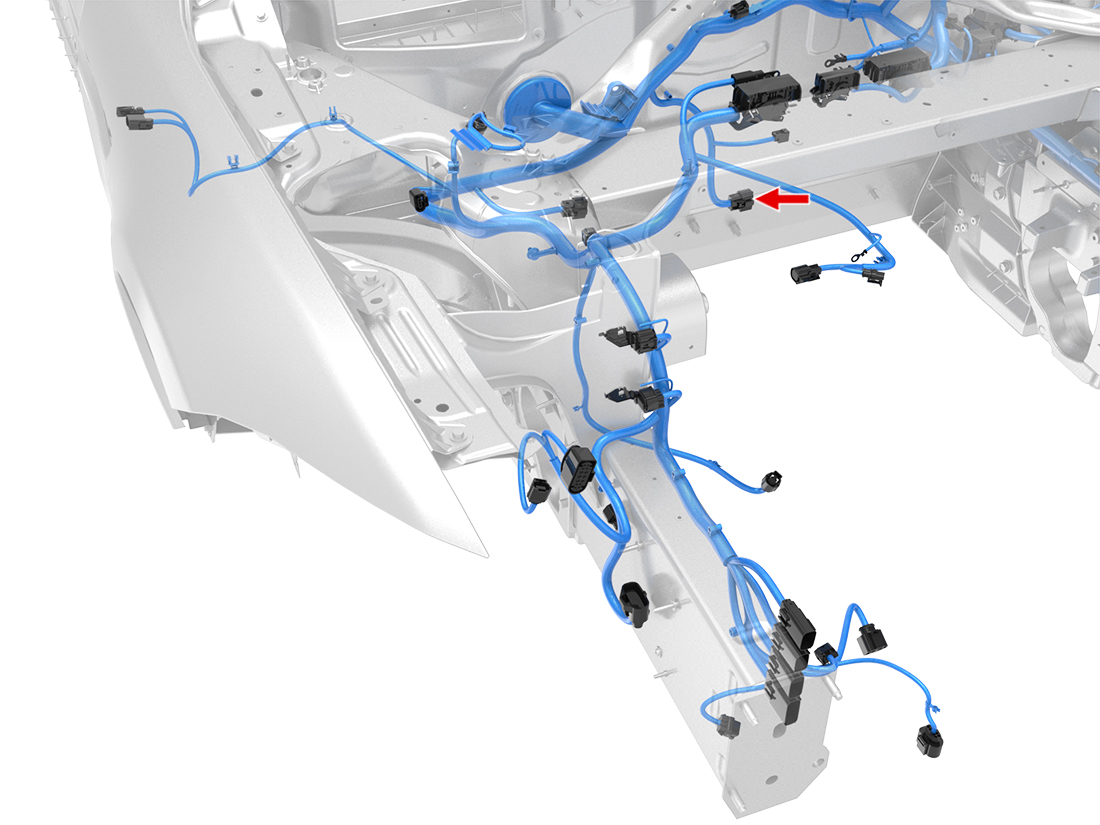

Location:
Connector Detail: molex_33472-1201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/GY | 0.35 |
| 2 | WH/RD | 0.35 |
| 3 | RD | 0.35 |
| 8 | YE/RD | 0.5 |
| 9 | LG/RD | 0.35 |
2012-2020 Model S Connector Reference
