X135A - s-lhd-sop7

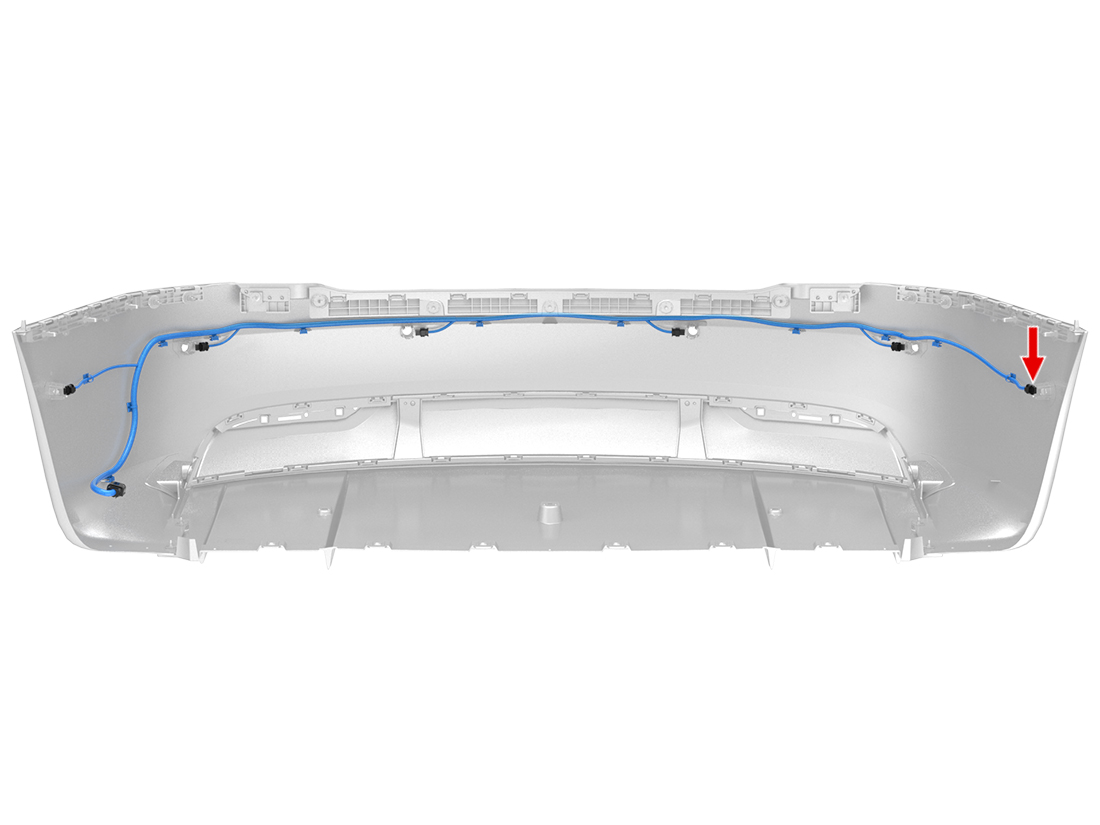

Location:
Connector Detail: fep_42811100
Gender: REC-STD
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BN | 0.35 |
| 2 | TN | 0.35 |
| 3 | WH/BK | 0.35 |
2012-2020 Model S Connector Reference
