X185 - s-lhd-sop7

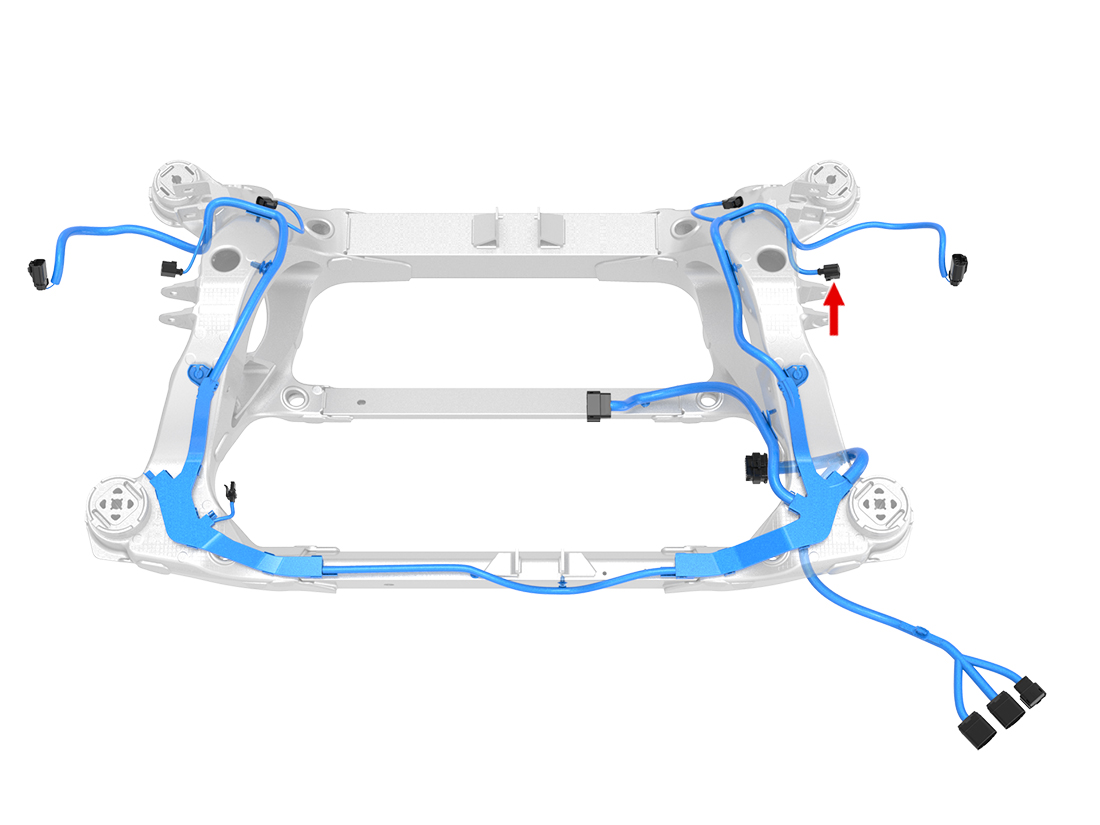

Location:
Connector Detail: fep_42511400
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | LG | 0.5 |
| 2 | VT/GY | 0.5 |
| 3 | LB | 0.5 |
2012-2020 Model S Connector Reference
