X189 - s-lhd-sop7

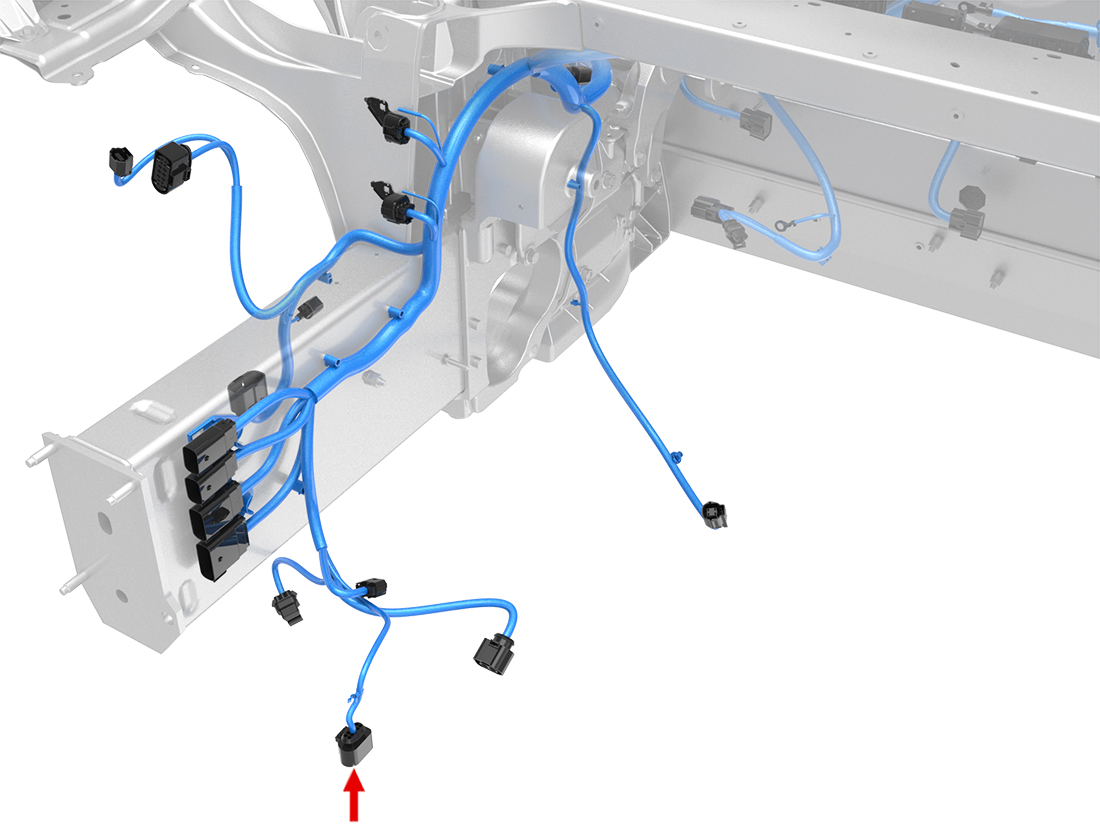

Location:
Connector Detail: fep_42122600
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN/BK | 0.5 |
| 2 | GY/YE | 0.5 |
| 3 | TN | 0.5 |
| 4 | DB | 0.5 |
| 5 | GY | 0.5 |
| 7 | BK | 0.5 |
| 8 | LG | 0.5 |
| 9 | WH/DG | 0.5 |
| 10 | GY | 0.5 |
