X250 - s-lhd-sop7

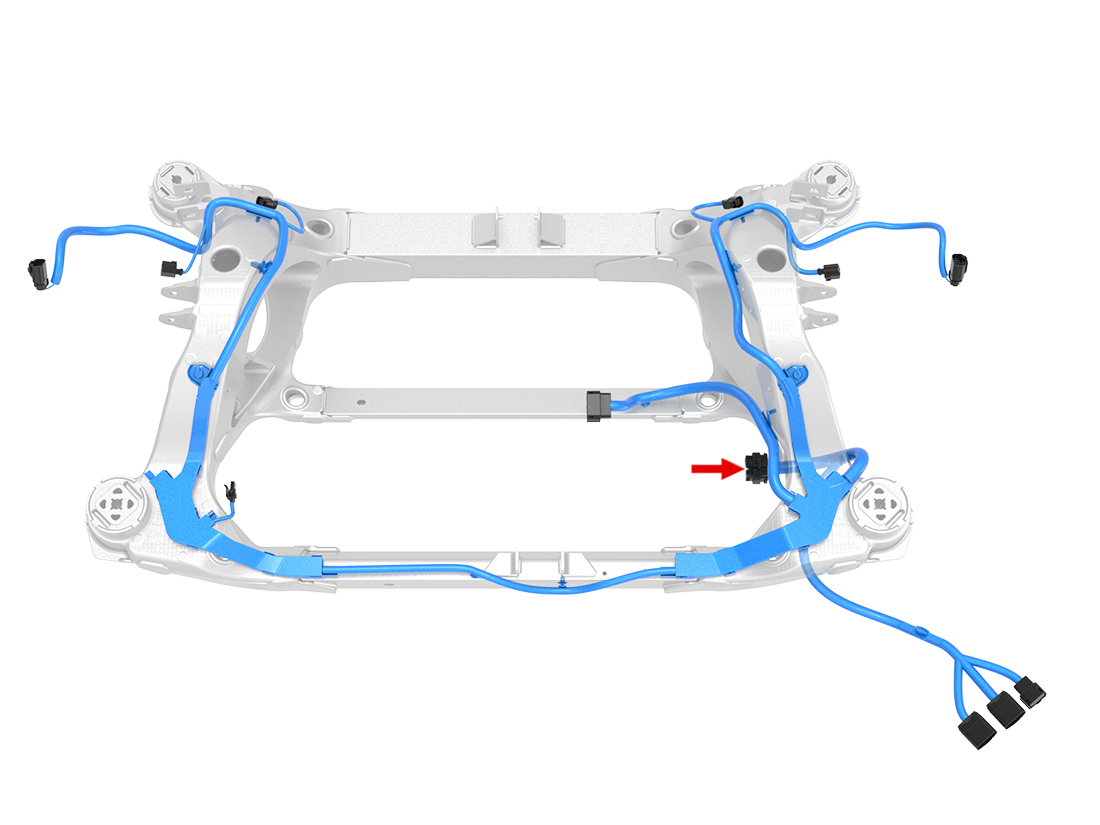

Location:
Connector Detail: amp_770680-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN | 1 |
| 2 | DG/VT | 0.5 |
| 3 | WH/DG | 0.5 |
| 4 | WH/RD | 0.5 |
| 5 | RD | 0.5 |
| 6 | OG/VT | 0.5 |
| 7 | YE/DG | 0.5 |
| 8 | YE/RD | 0.5 |
| 9 | RD | 0.5 |
| 10 | WH | 0.5 |
| 11 | BK | 1 |
| 12 | WH/DB | 0.5 |
| 13 | DB | 0.5 |
| 14 | VT | 0.5 |
| 15 | LG | 0.5 |
| 16 | DG | 0.5 |
| 17 | BK | 0.5 |
| 18 | SH | 5.01 |
| 21 | WH/BK | 0.5 |
| 22 | BN/YE | 0.5 |
| 23 | BN/GY | 0.5 |
