X805F - s-lhd-sop7

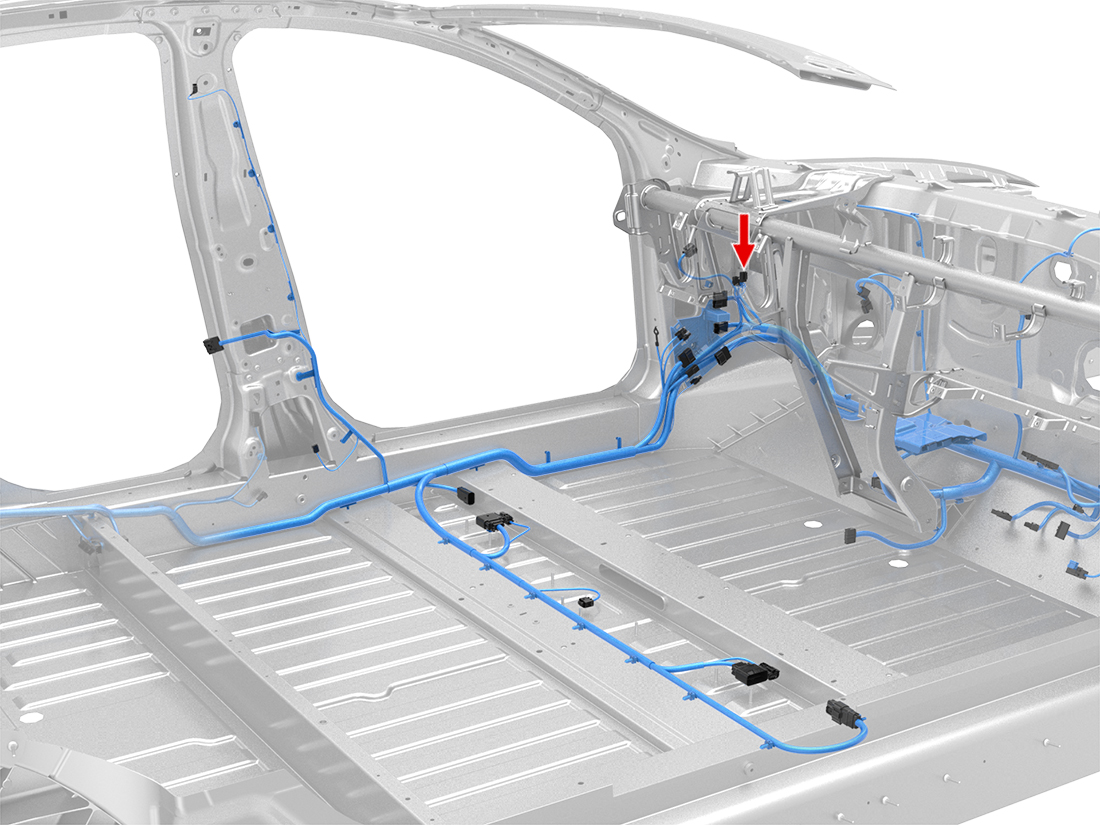

Location:

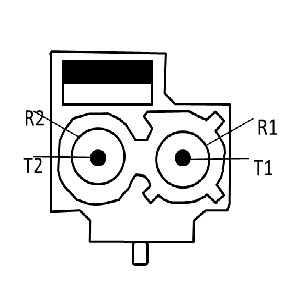

Connector Detail: amphenol_2fah-nbsj-c00-9
Gender:
Color: CremeWhite
| Cav | Col | Gauge |
|---|---|---|
| 1 | NA | 0.22 |
| R1 | SH | 3.01 |
| 2 | NA | 0.22 |
| R2 | SH | 3.01 |
2012-2020 Model S Connector Reference
