X922F - s-lhd-sop7

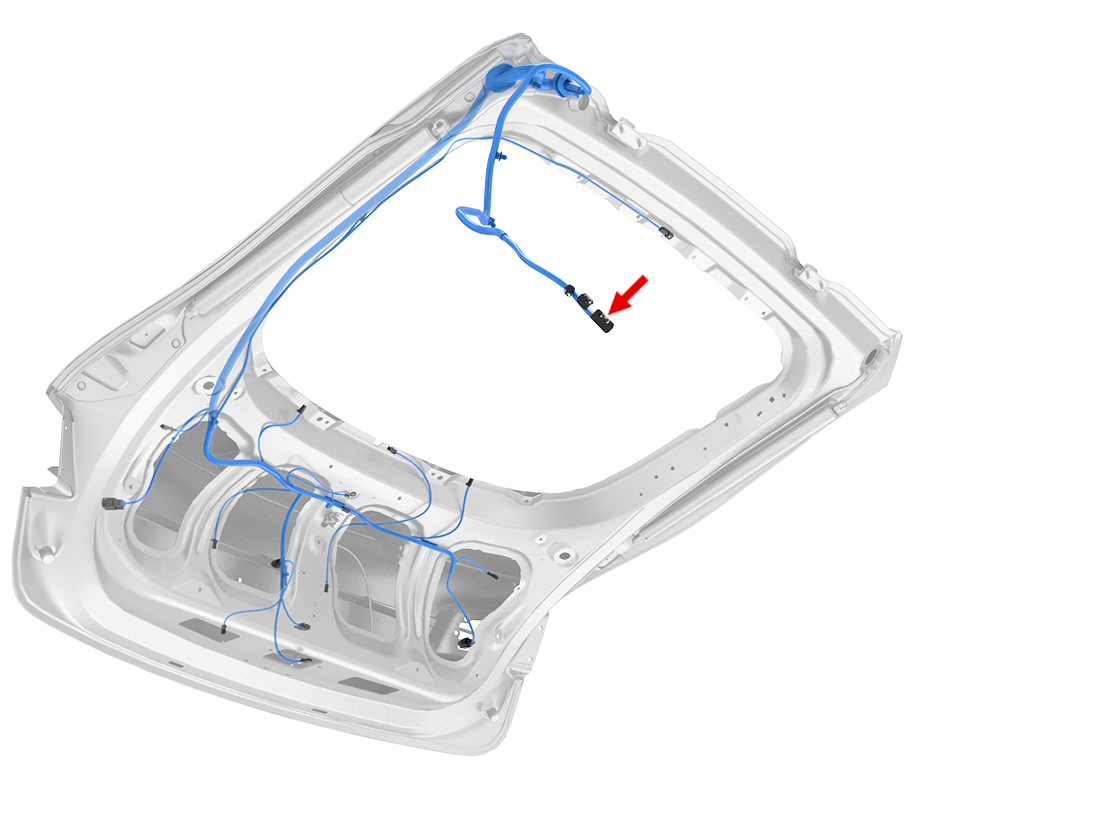

Location:
Connector Detail: sumitomo_6098-5604
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | LB | 0.75 |
| 2 | LB/BK | 0.75 |
| 3 | TN/DB | 0.35 |
| 4 | WH/BK | 0.35 |
| 5 | TN | 0.35 |
| 6 | DB/LB | 0.35 |
| 8 | VT/GY | 0.35 |
| 11 | LG | 0.75 |
| 12 | LG/BK | 0.75 |
| 13 | VT/GY | 0.35 |
| 14 | TN/DG | 0.35 |
| 15 | TN/BK | 0.35 |
| 16 | GY | 0.35 |
