X947M - s-lhd-sop7

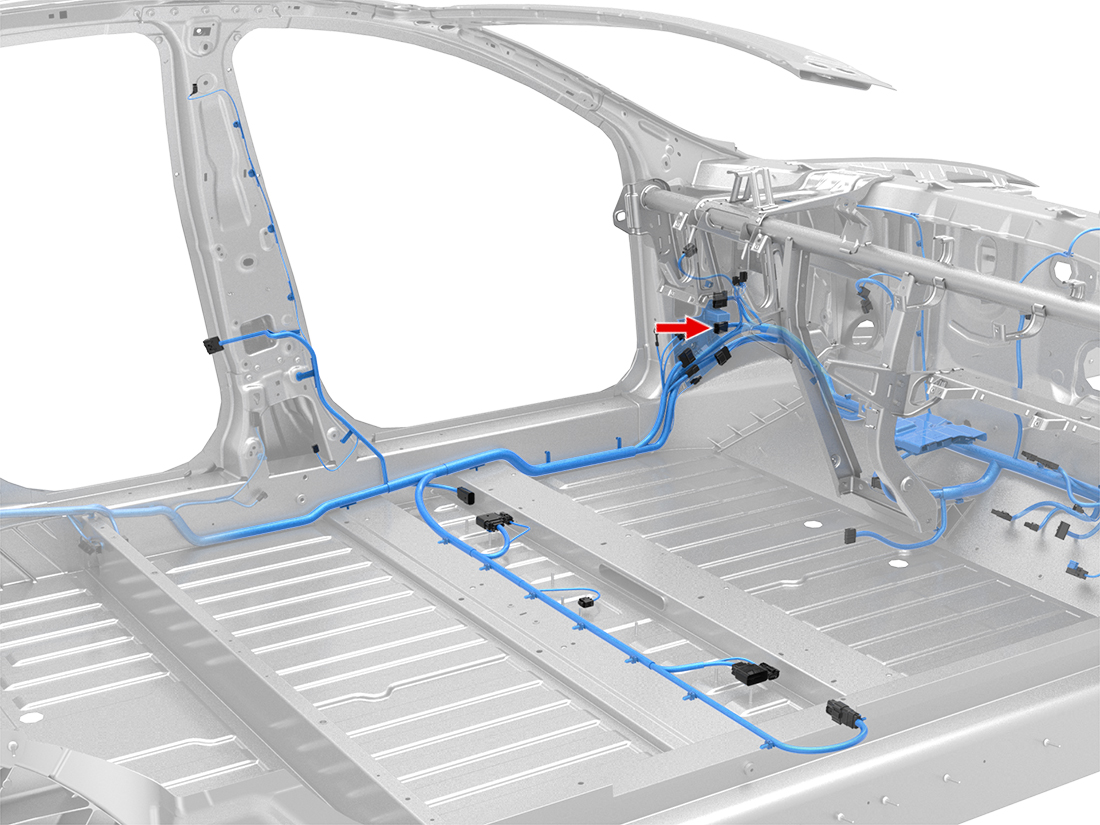

Location:
Connector Detail: sumitomo_6098-5650
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 2 |
| 2 | VT/BK | 2 |
| 3 | BK | 2 |
| 4 | BK | 2 |
| 5 | DG | 2 |
| 6 | DG/BK | 2 |
| 7 | WH | 2 |
| 12 | GY | 2 |
| 13 | WH/BK | 2 |
| 18 | GY/BK | 2 |
