G680 - s-lhd-sop8

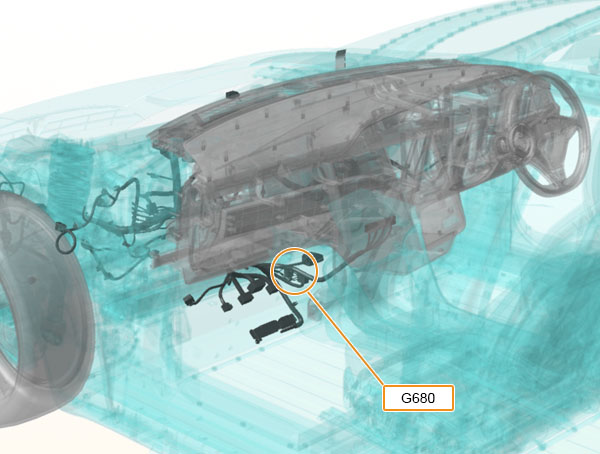

Location:
Connector Detail: yazaki_7009-1836
Gender:
Color:
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 2 |
| 1 | BK | 2 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 3 |
| 1 | BK | 3 |
| 1 | BK | 3 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
