X025 - s-lhd-sop8

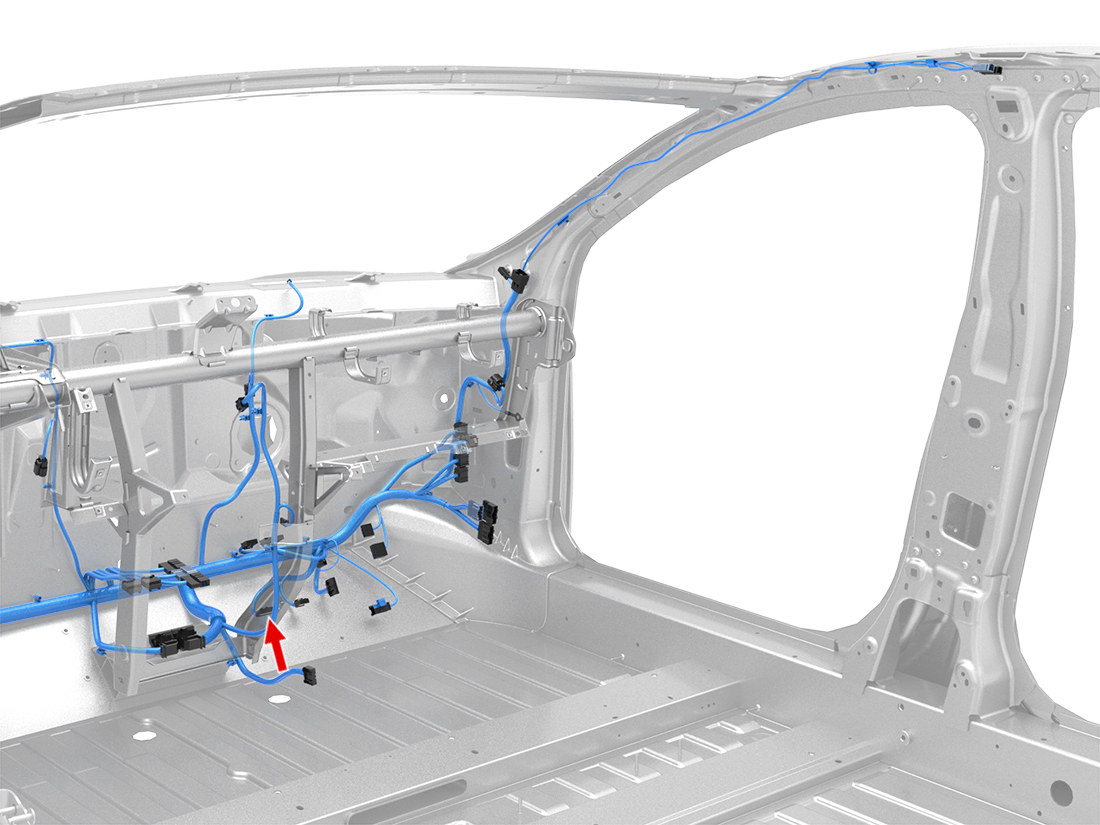

Location:
Connector Detail: jae_mx34032sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN | 0.35 |
| 2 | YE/WH | 0.35 |
| 3 | WH/BK | 0.35 |
| 4 | RD/WH | 0.5 |
| 5 | OG | 0.5 |
| 6 | WH/BU | 0.35 |
| 8 | VT/WH | 0.5 |
| 12 | BN | 0.35 |
| 14 | GY | 0.35 |
| 16 | VT | 0.75 |
| 17 | GN/WH | 0.35 |
| 19 | GY/WH | 0.35 |
| 20 | BK | 0.35 |
| 21 | BU | 0.35 |
| 22 | WH | 0.35 |
| 24 | YE | 0.5 |
| 29 | GN | 0.35 |
| 32 | RD/GY | 0.75 |
