X066 - s-lhd-sop8

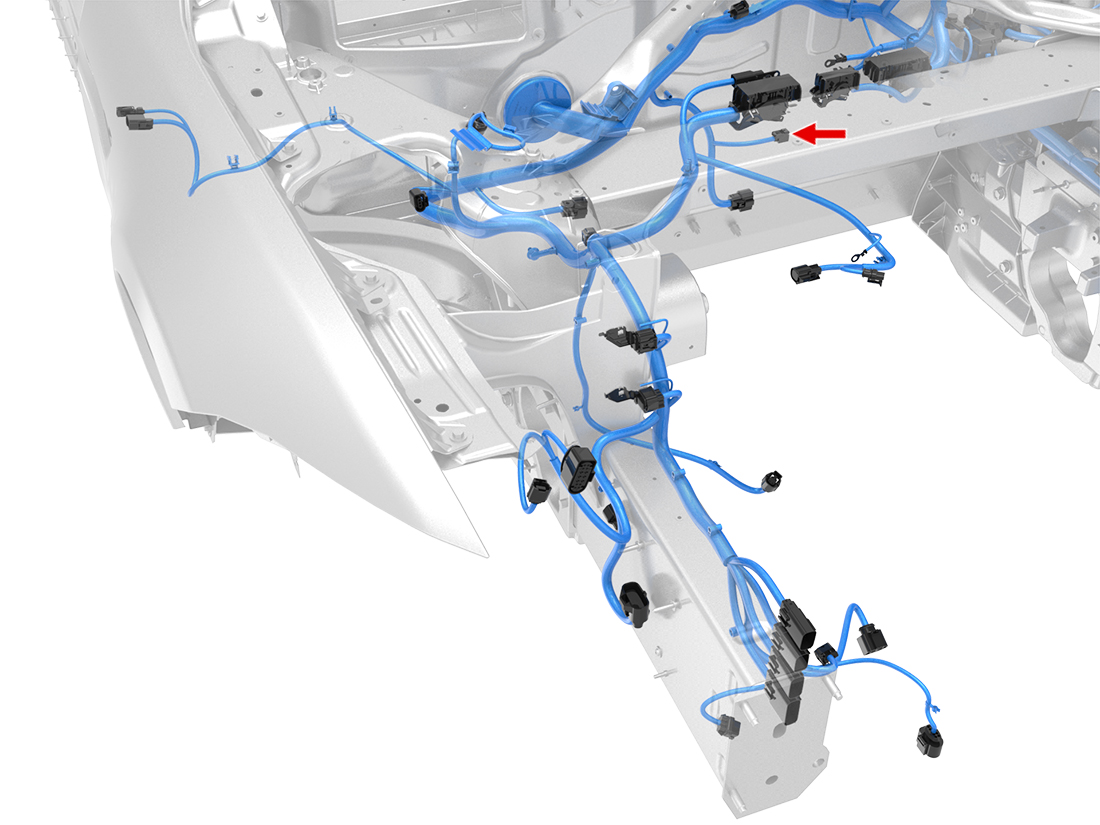

Location:
Connector Detail: yazaki_7283-6078-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BU | 0.5 |
| 2 | GY/WH | 0.5 |
2012-2020 Model S Connector Reference
