X075 - s-lhd-sop8

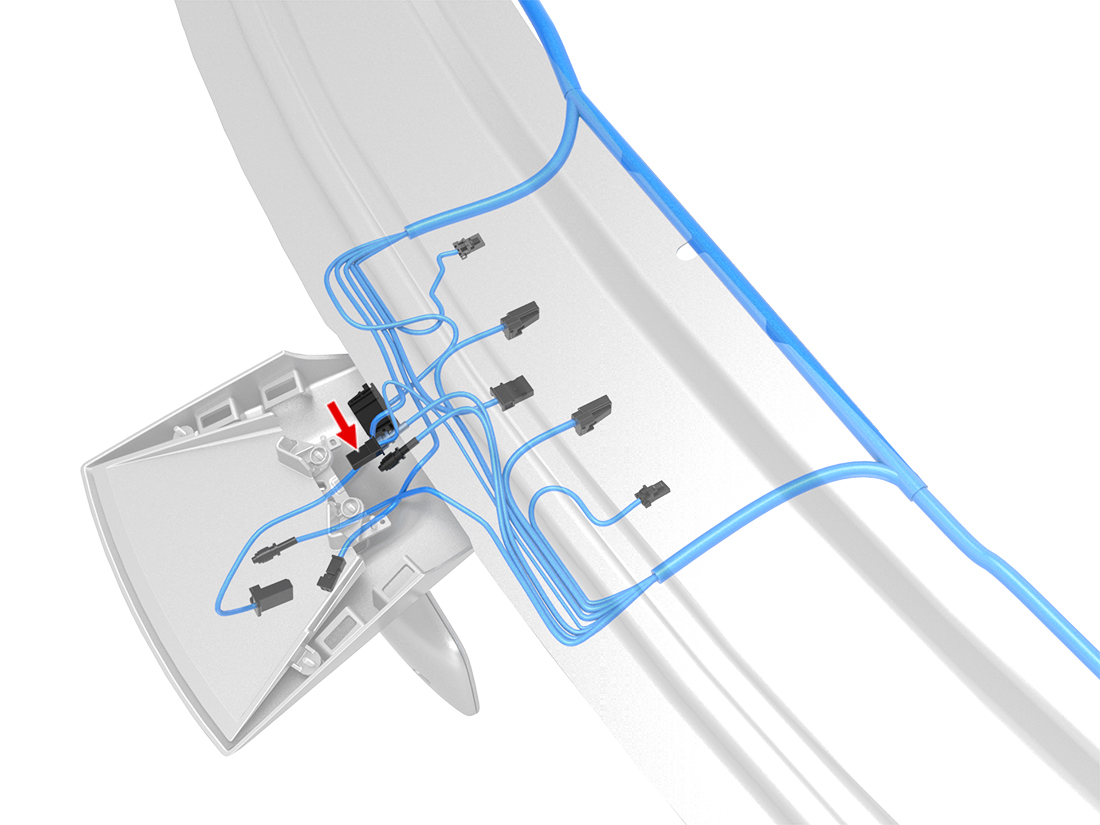

Location:
Connector Detail: amp_9-1718346-1
Gender:
Color: WaterBlue
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/GY | 0.35 |
| 2 | LG | 0.35 |
| 3 | GY/WH | 0.35 |
2012-2020 Model S Connector Reference
