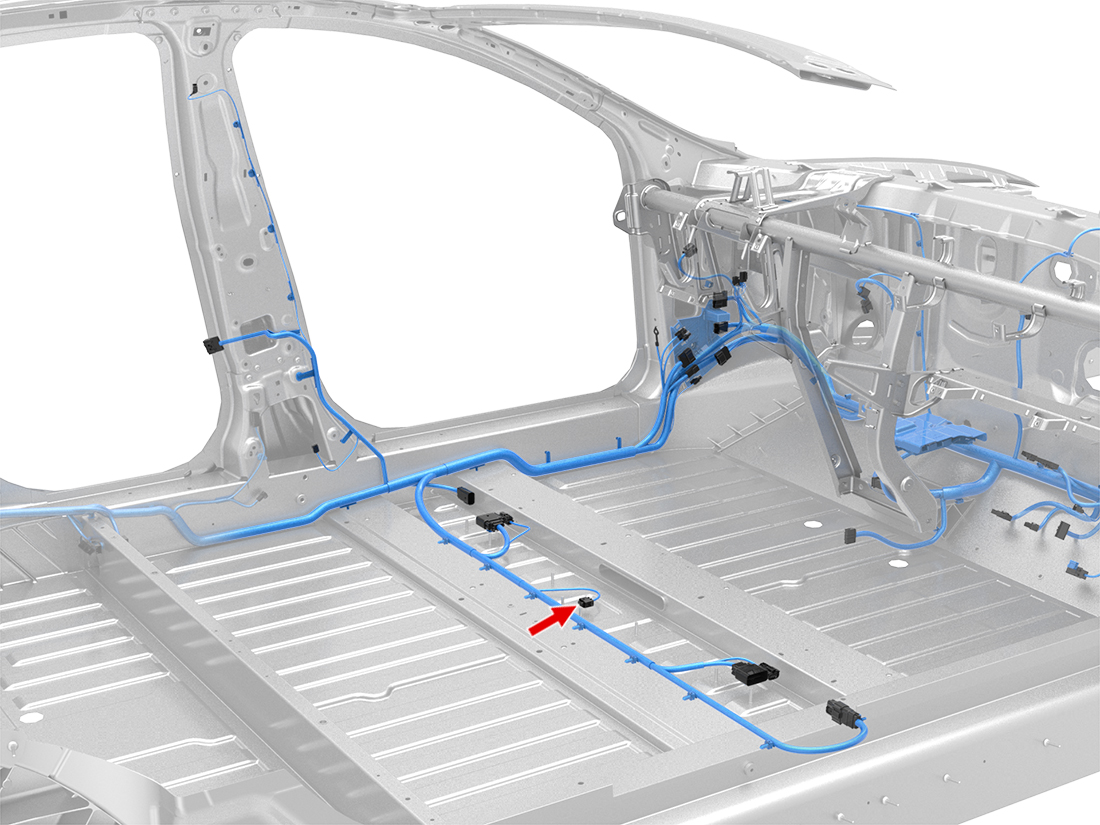

X108 - s-lhd-sop8
Location:
Connector Detail: amp_1-967640-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.35 |
| 2 | YE | 0.35 |
| 3 | YE/WH | 0.35 |
| 4 | WH/BK | 0.35 |
2012-2020 Model S Connector Reference
