X134A - s-lhd-sop8

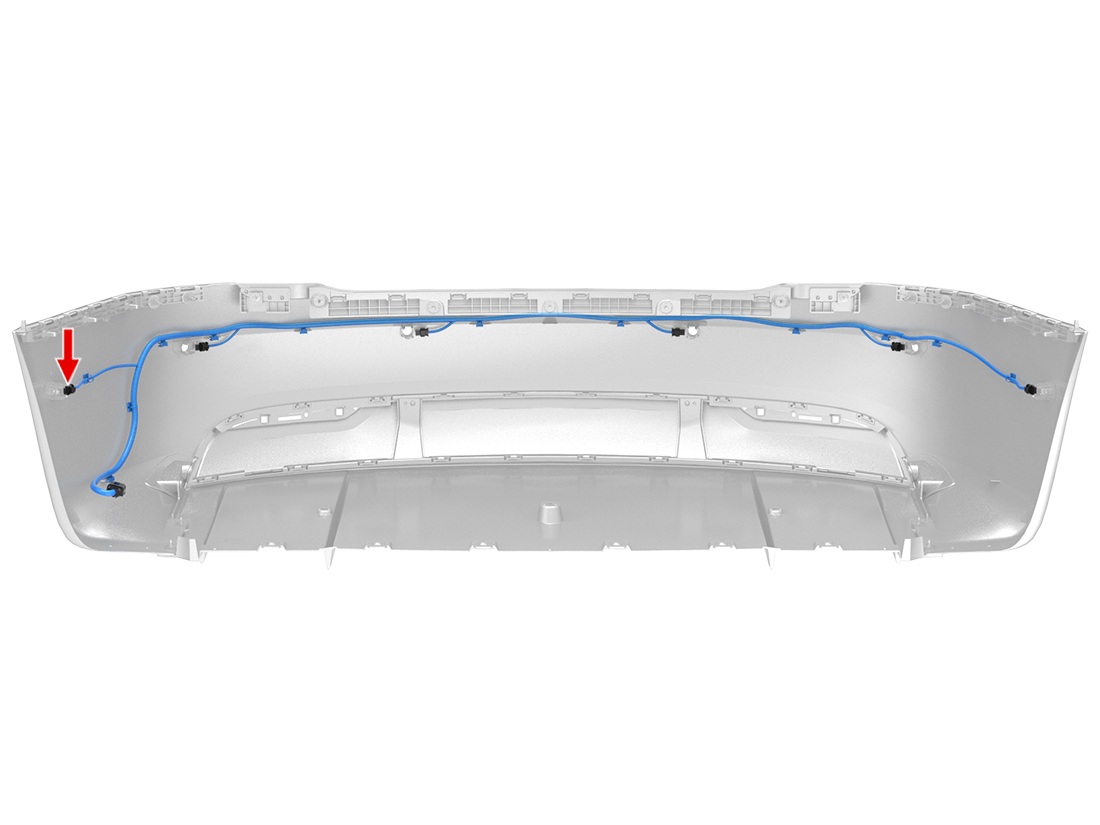

Location:
Connector Detail: fep_42811100
Gender: REC-STD
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN/WH | 0.35 |
| 2 | BU/WH | 0.35 |
| 3 | BK/WH | 0.35 |
2012-2020 Model S Connector Reference
