X164A - s-lhd-sop8

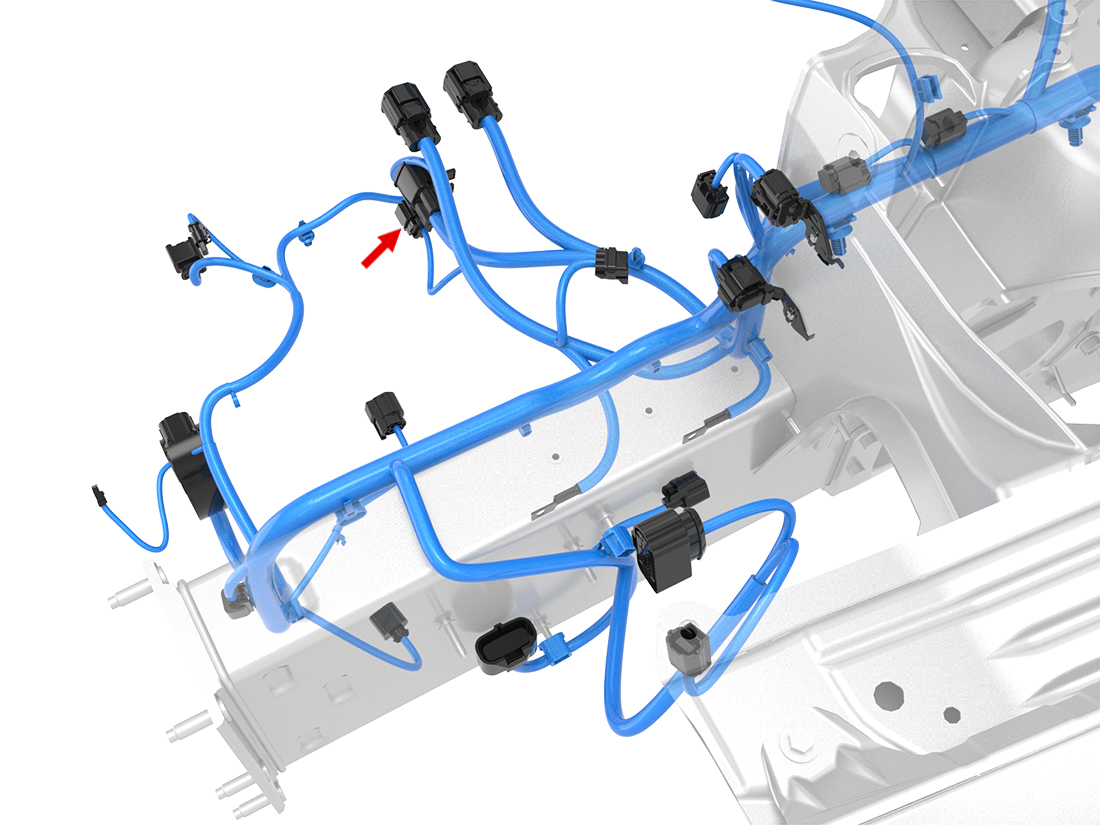

Location:
Connector Detail: delphi_33109284
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD/WH | 0.75 |
| 8 | GN/WH | 0.75 |
| 9 | GN | 0.75 |
2012-2020 Model S Connector Reference
