X183 - s-lhd-sop8

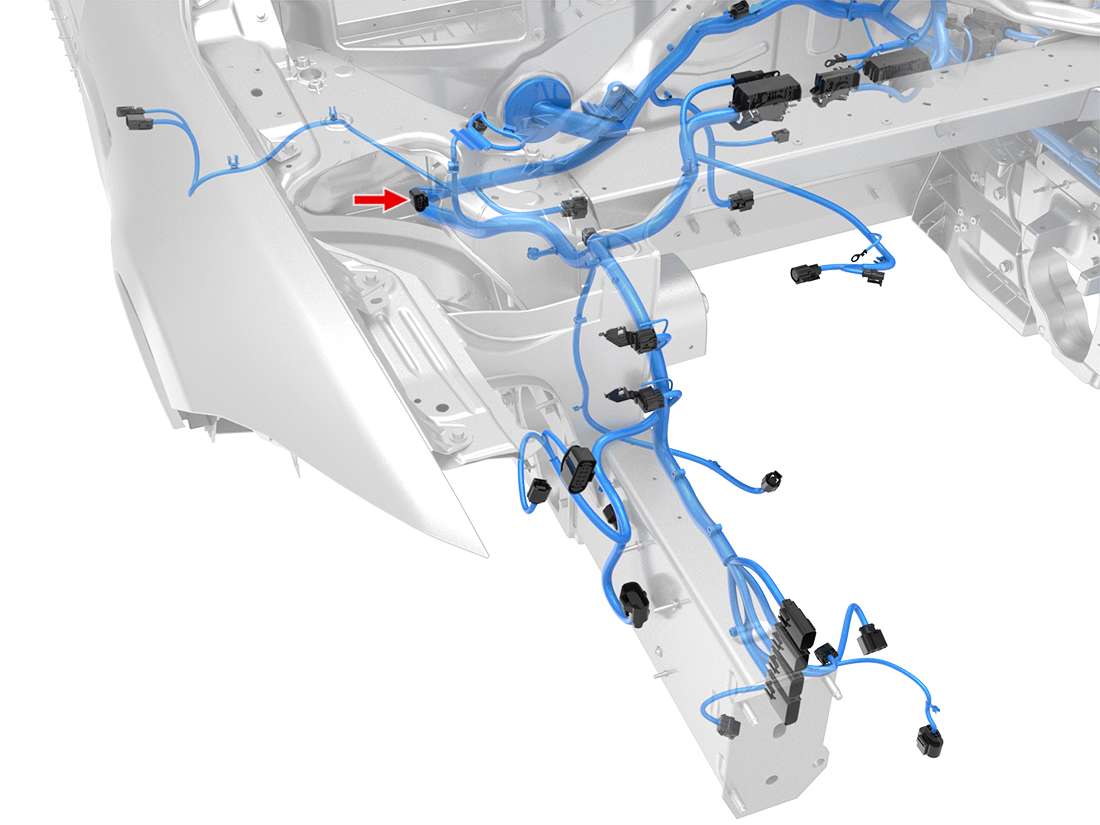

Location:
Connector Detail: fep_42511400
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK/VT | 0.35 |
| 1 | BK/WH | 0.35 |
| 2 | WH | 0.35 |
| 2 | RD/YE | 0.35 |
| 3 | RD/VT | 0.35 |
| 3 | RD/WH | 0.35 |
2012-2020 Model S Connector Reference
