X191 - s-lhd-sop8

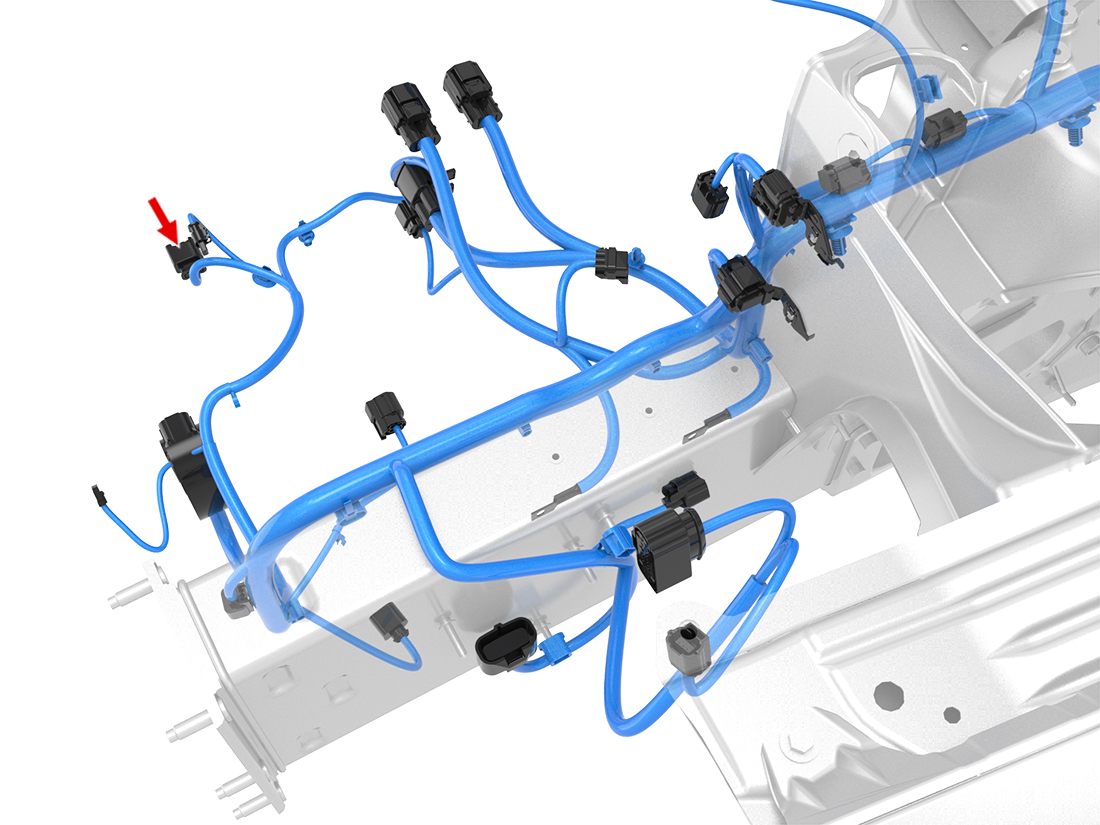

Location:
Connector Detail: kostal_09444031
Gender: REC-STD
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 0.35 |
| 2 | RD/GY | 0.35 |
| 3 | OG | 0.35 |
2012-2020 Model S Connector Reference
