X230 - s-lhd-sop8

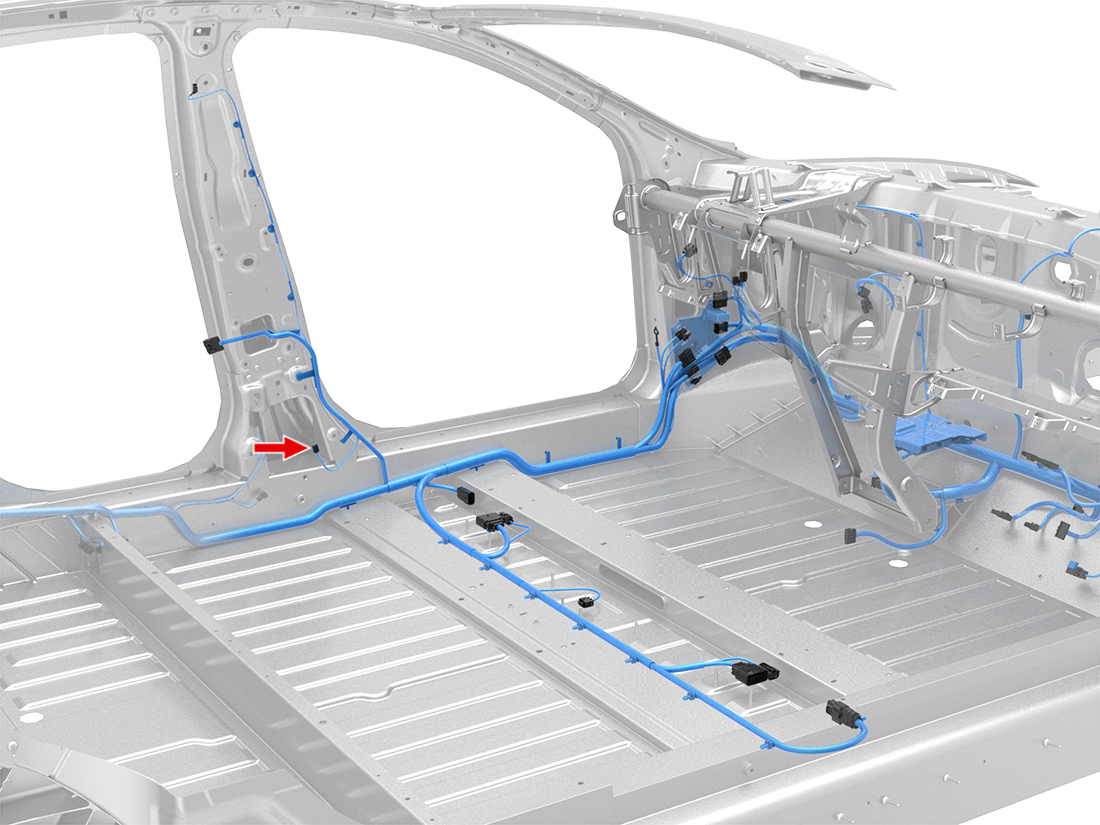

Location:
Connector Detail: amp_1612121-5
Gender:
Color: Orange
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/GN | 0.5 |
| 2 | BK/VT | 0.5 |
