X250 - s-lhd-sop8

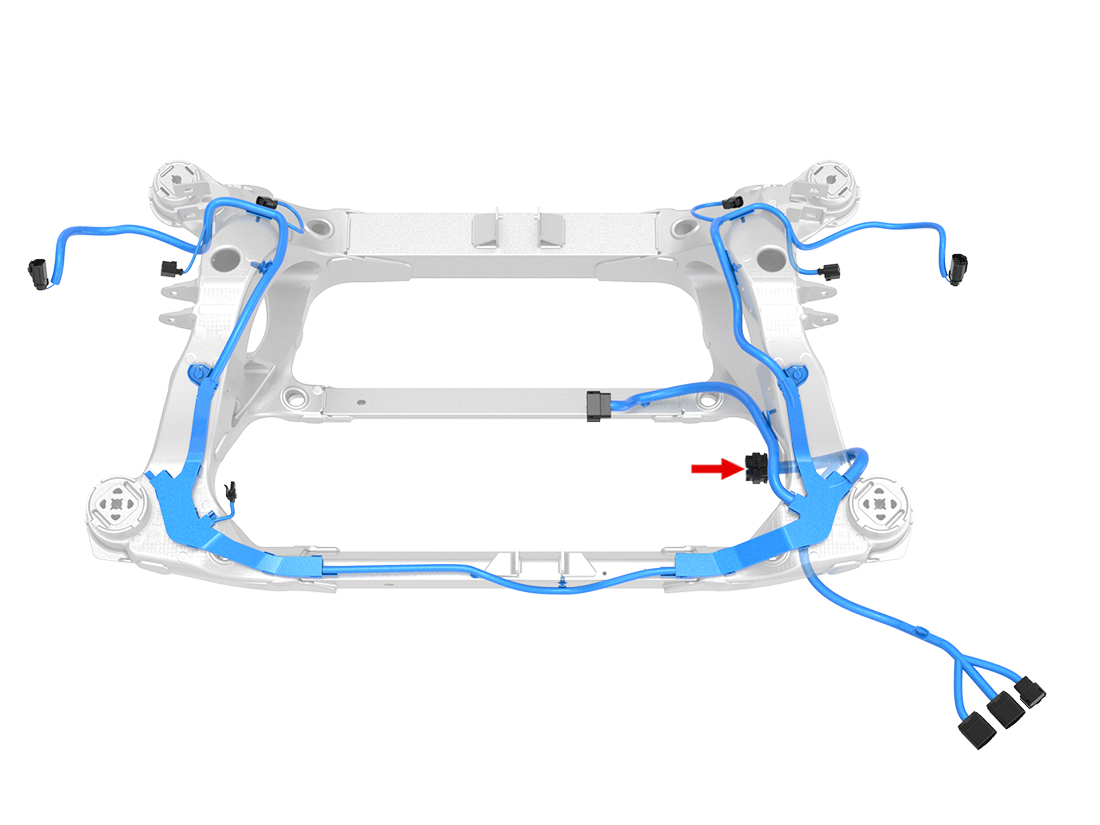

Location:
Connector Detail: amp_770680-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/BK | 0.75 |
| 2 | WH | 0.75 |
| 3 | GN/WH | 0.75 |
| 4 | RD/WH | 0.75 |
| 5 | RD | 0.75 |
| 6 | VT/WH | 0.75 |
| 7 | RD/YE | 0.75 |
| 8 | YE | 0.75 |
| 9 | RD/VT | 0.75 |
| 10 | RD/GY | 0.75 |
| 11 | BK | 0.75 |
| 12 | OG | 0.75 |
| 13 | GY | 0.75 |
| 14 | BU | 0.75 |
| 15 | GN | 0.75 |
| 16 | GN | 0.75 |
| 17 | BK | 0.75 |
| 18 | WH | 0.75 |
| 21 | BU/WH | 0.75 |
| 22 | BK/VT | 0.75 |
| 23 | RD/BU | 0.75 |
