X259 - s-lhd-sop8

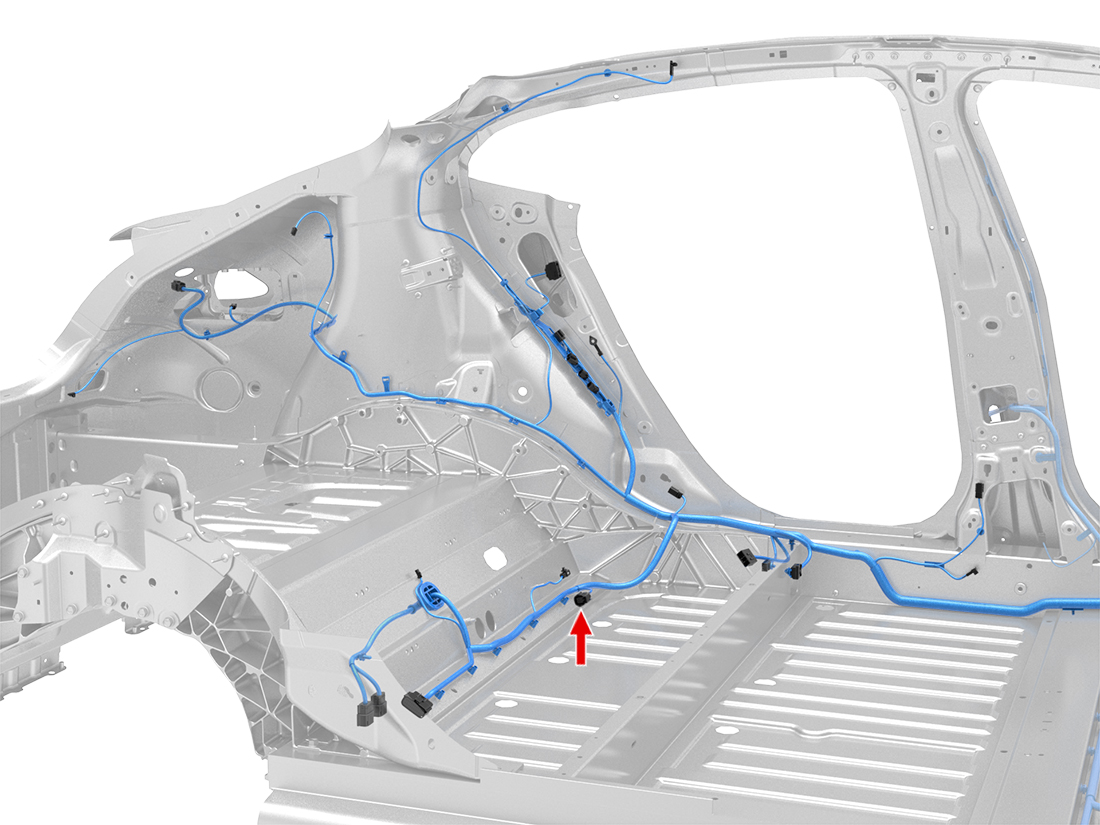

Location:
Connector Detail: sumitomo_6189-7757
Gender: UNSPEC
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/WH | 1.5 |
| 2 | BK | 1 |
| 3 | RD/GY | 0.35 |
| 4 | WH | 0.35 |
