X332 - s-lhd-sop8

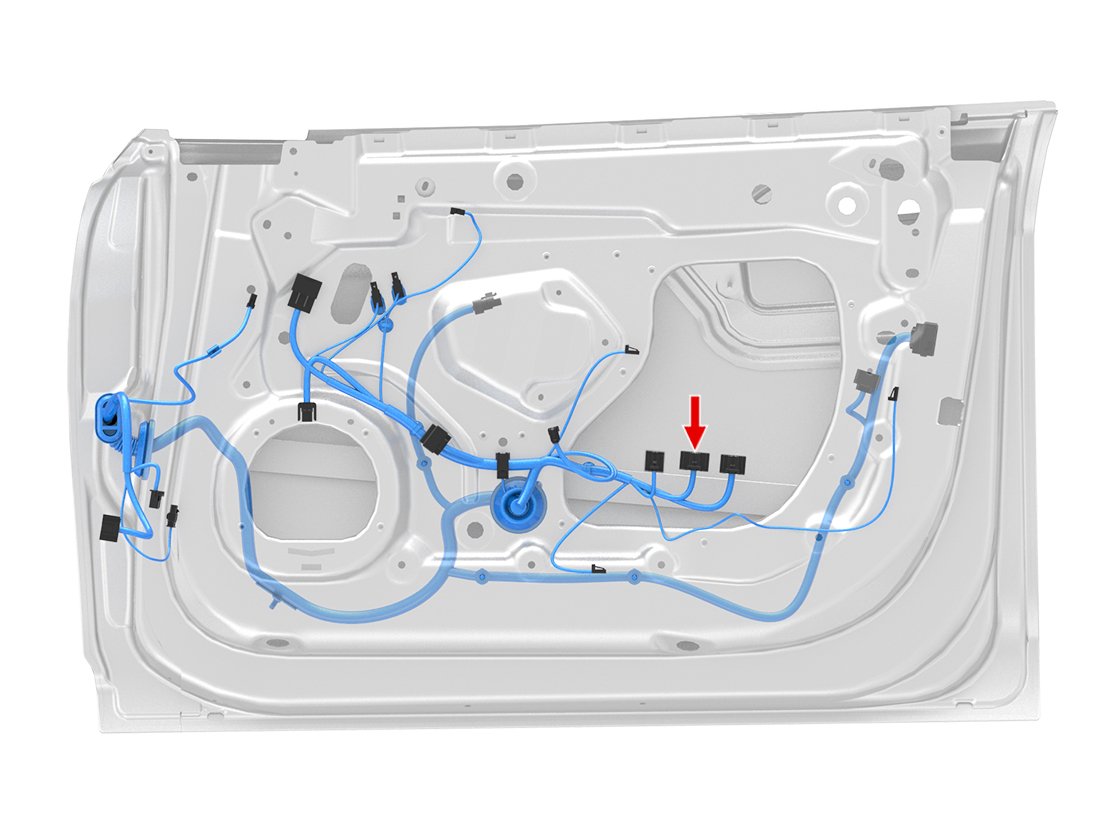

Location:
Connector Detail: jae_mx34028sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 2 | VT/GY | 0.35 |
| 3 | DG | 0.35 |
| 4 | RD | 0.35 |
| 5 | RD/GY | 0.35 |
| 6 | WH/RD | 0.35 |
| 8 | RD | 0.35 |
| 14 | RD | 0.35 |
| 15 | TN | 0.35 |
| 16 | WH/BN | 0.35 |
| 18 | GY | 0.35 |
| 19 | GY/WH | 0.35 |
| 21 | WH/BK | 0.35 |
| 22 | BK | 0.35 |
| 23 | DB/GY | 0.35 |
| 27 | SH | 3.01 |
| 28 | BK | 0.35 |
