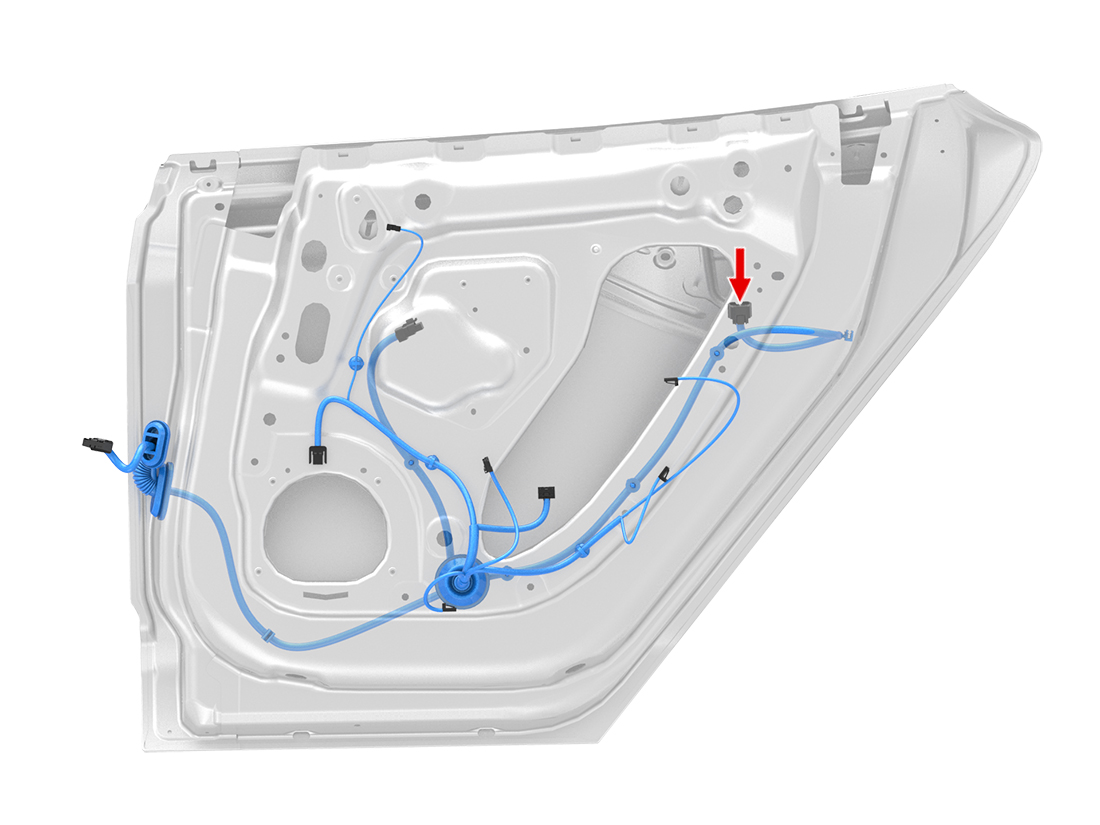

X370 - s-lhd-sop8
Location:
Connector Detail: yazaki_7283-8856-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BU | 0.35 |
| 2 | BK | 0.35 |
| 5 | BN/WH | 0.35 |
| 10 | WH | 0.35 |
2012-2020 Model S Connector Reference
