X391 - s-lhd-sop8

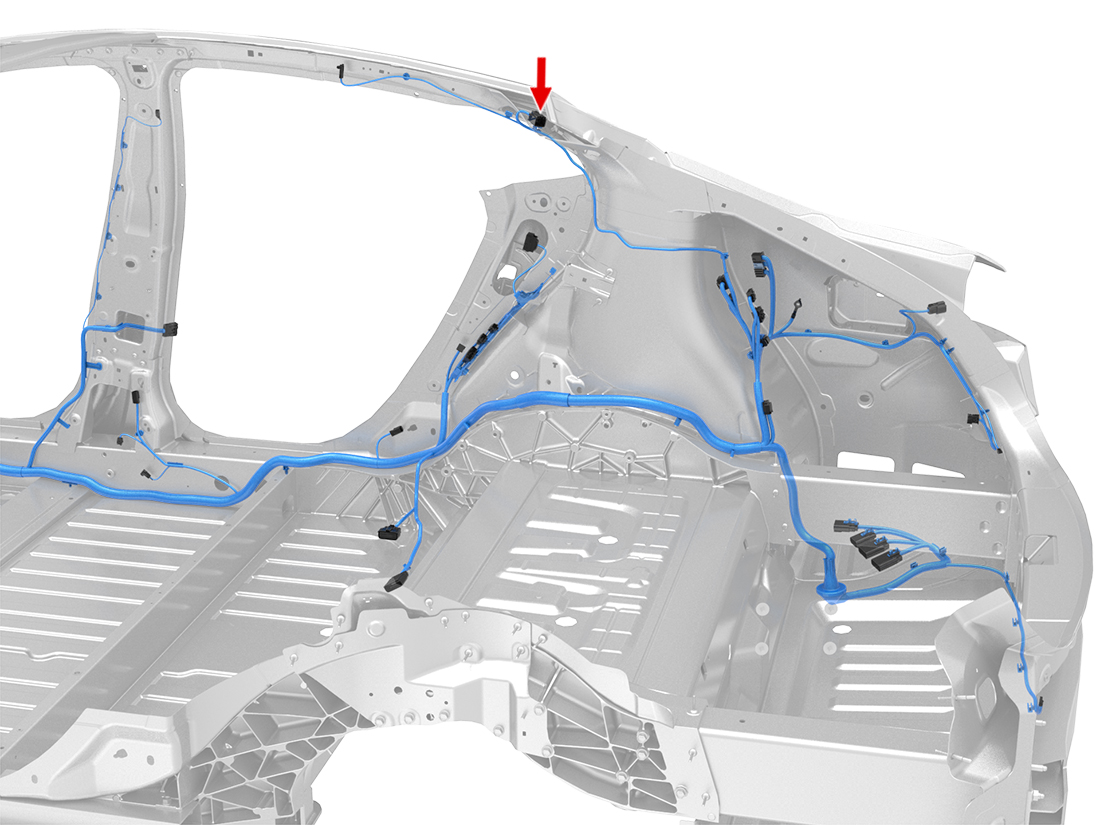

Location:
Connector Detail: yazaki_7282-6448-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/WH | 2 |
| 2 | RD | 0.5 |
| 3 | RD/VT | 0.5 |
| 4 | BK/WH | 2 |
| 5 | RD/GN | 0.5 |
| 6 | RD/BU | 0.5 |
2012-2020 Model S Connector Reference
