X403 - s-lhd-sop8

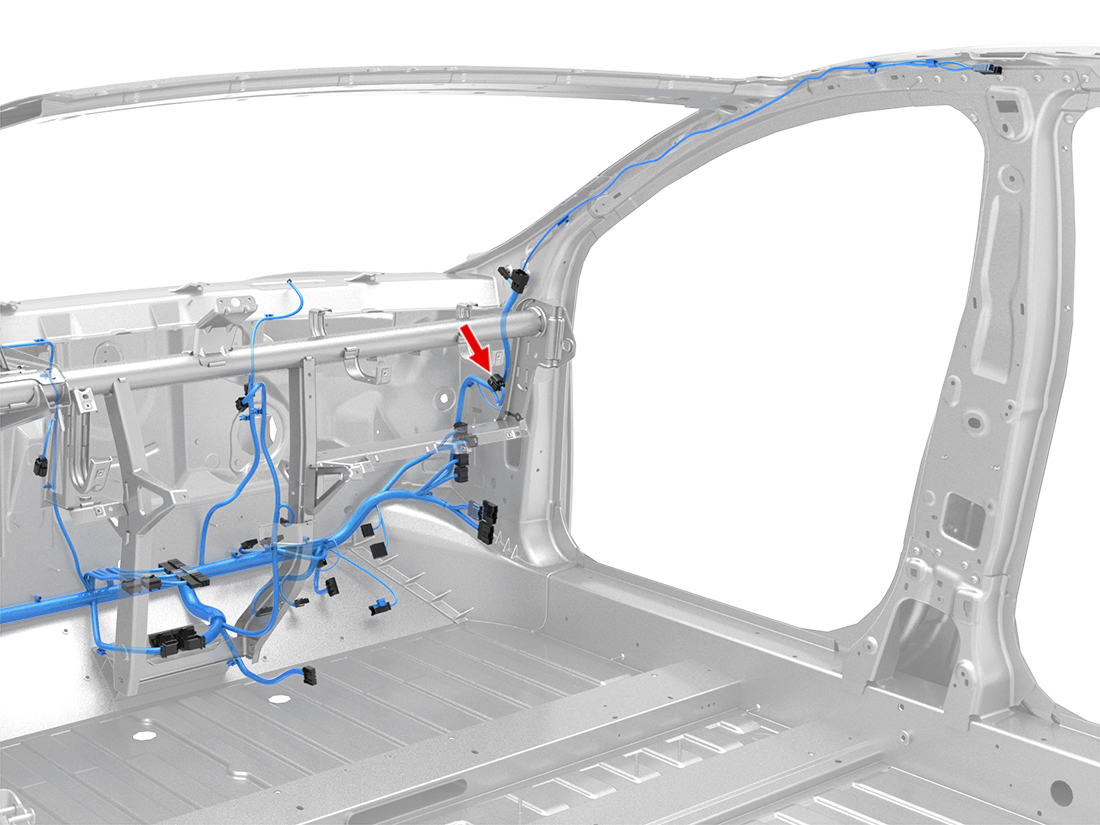

Location:
Connector Detail: sumitomo_6189-0133
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN/WH | 0.35 |
| 2 | GY | 0.35 |
| 3 | RD/VT | 1 |
| 4 | GN/WH | 0.35 |
| 5 | WH | 0.35 |
| 6 | VT | 1 |
