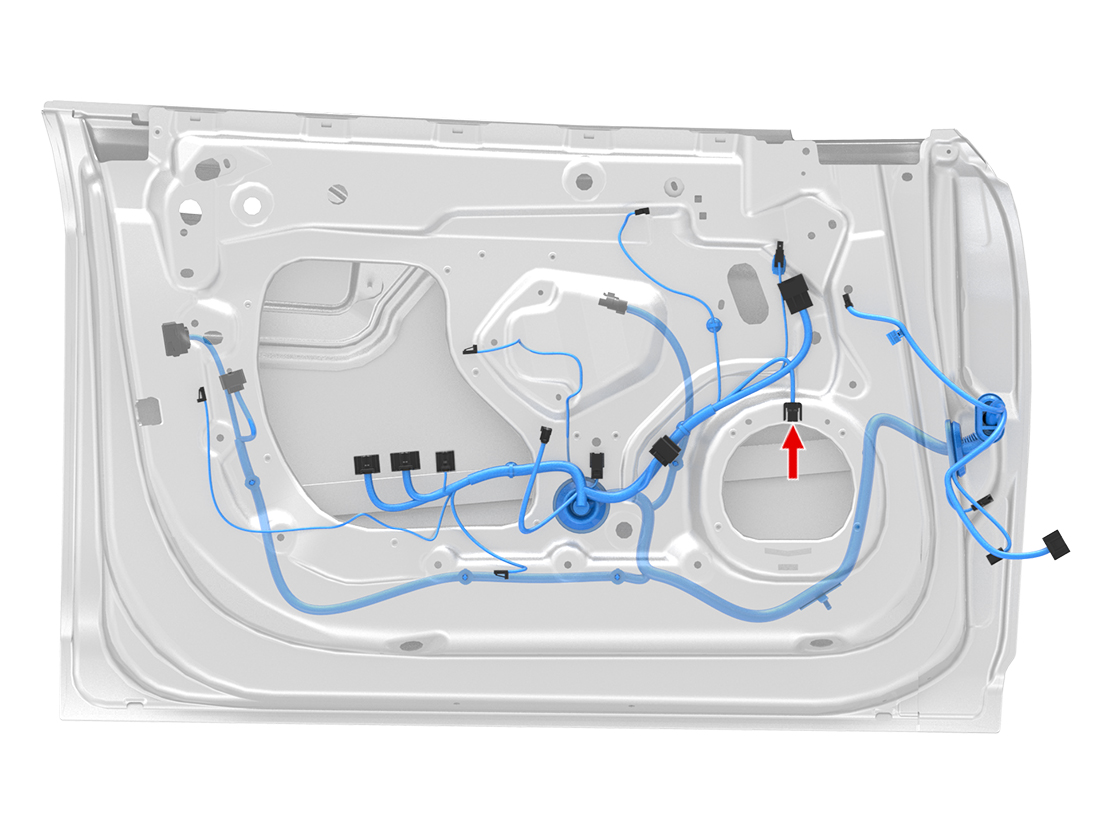

X418 - s-lhd-sop8
Location:
Connector Detail: amp_365058-3
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH | 2 |
| 2 | WH/BK | 2 |
2012-2020 Model S Connector Reference
