X562 - s-lhd-sop8

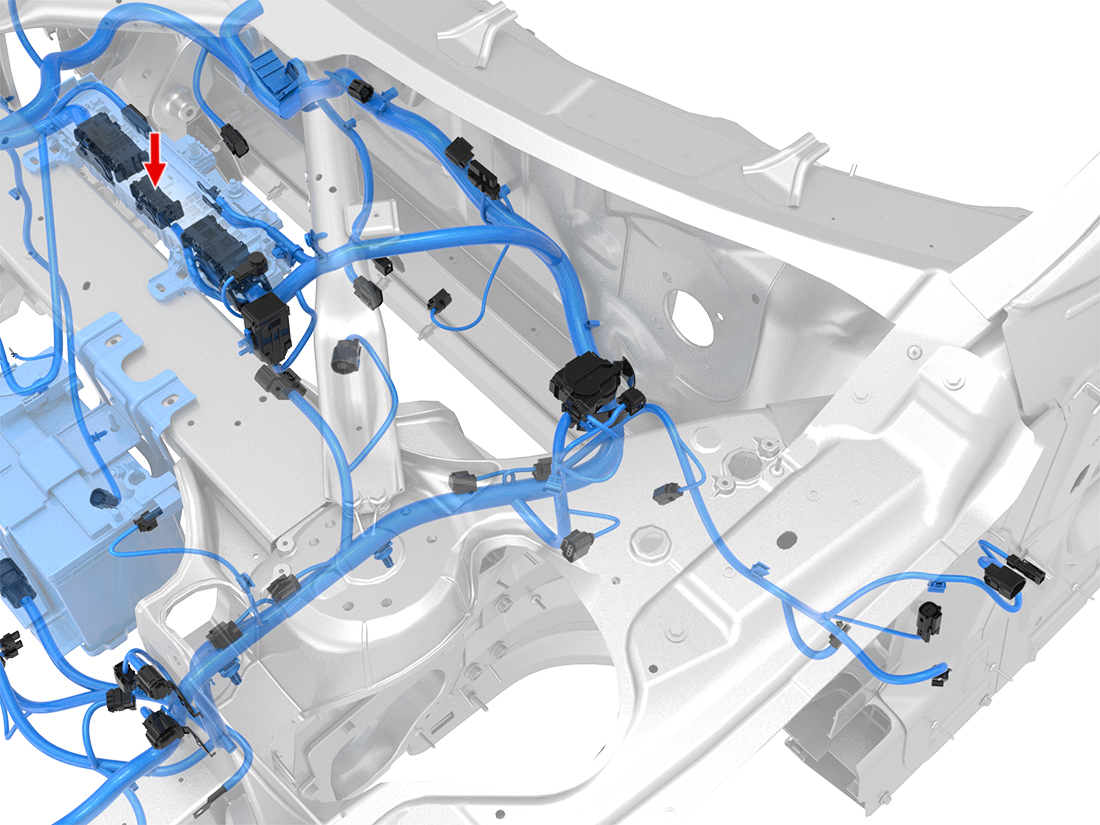

Location:
Connector Detail: delphi_15547108
Gender:
Color:
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD/VT | 0.35 |
| 3 | RD | 1 |
| 5 | RD/BU | 0.5 |
| 7 | RD/WH | 0.35 |
| 8 | RD/WH | 0.35 |
| 9 | RD/WH | 0.75 |
| 10 | RD/GN | 2 |
| 12 | RD/WH | 0.5 |
| 13 | RD/BU | 0.5 |
| 14 | RD/BU | 0.5 |
| 15 | RD/WH | 1 |
| 20 | RD/BK | 0.75 |
