X575 - s-lhd-sop8

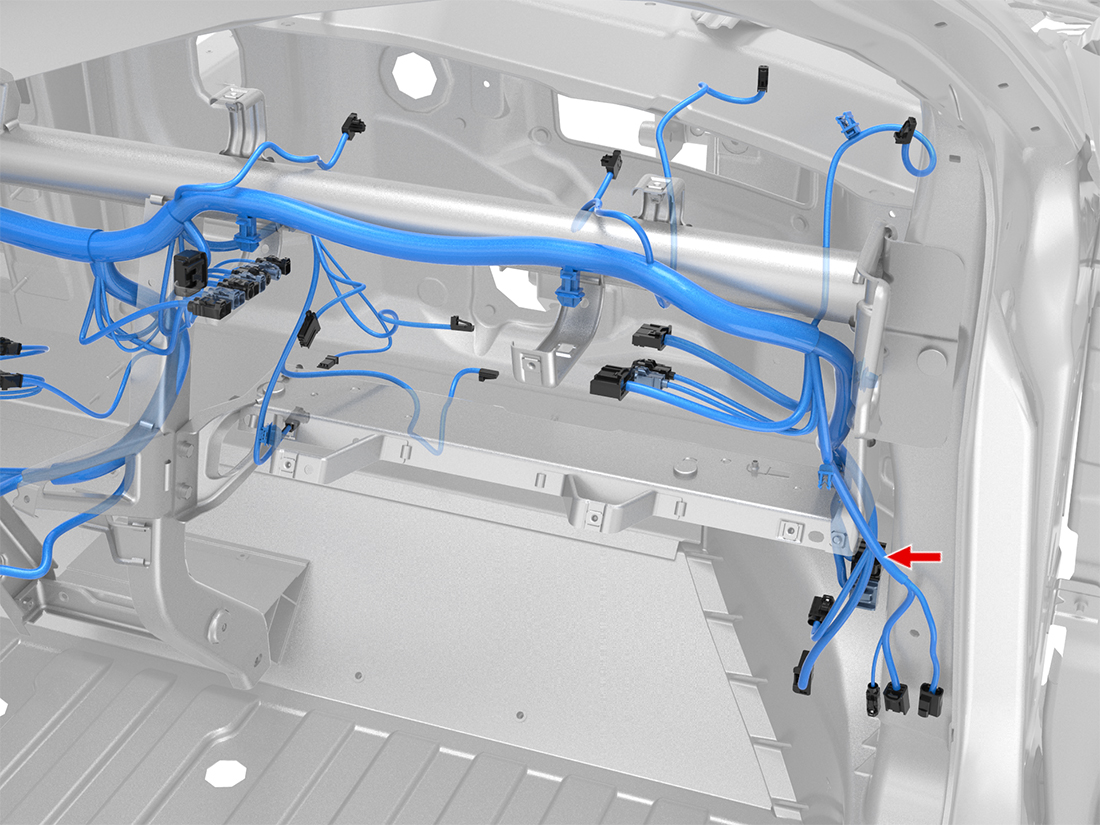

Location:
Connector Detail: delphi_13799638
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 3 | RD/BK | 0.5 |
| 6 | RD/GN | 1.5 |
| 7 | RD | 0.5 |
| 8 | RD/WH | 1.5 |
