X747 - s-lhd-sop8

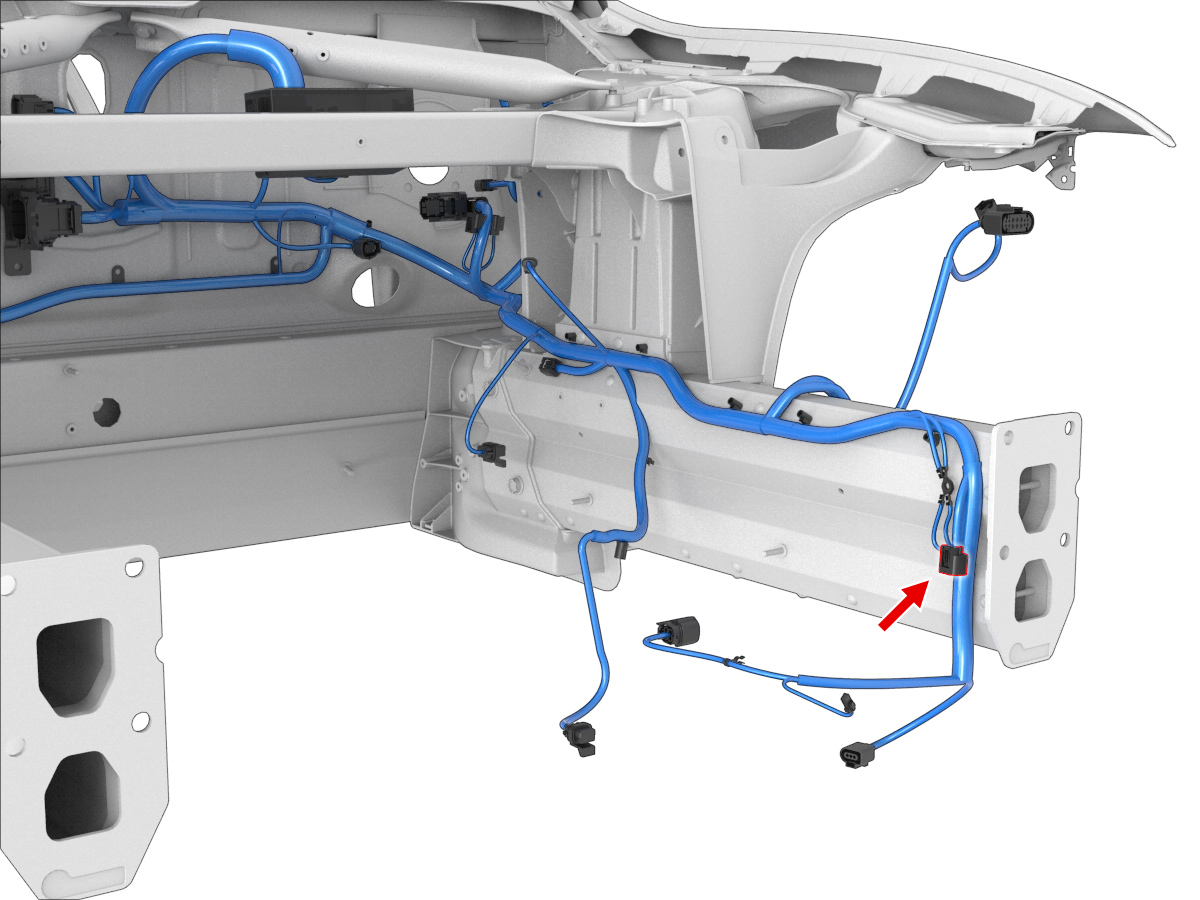

Location:
Connector Detail: yazaki_7283-2764-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN/WH | 0.35 |
| 2 | GN/WH | 0.35 |
| 3 | GN/WH | 0.35 |
| 4 | GN | 0.35 |
| 5 | GN | 0.35 |
| 6 | GN | 0.35 |
2012-2020 Model S Connector Reference
